£477.04
excl. VAT
£572.45 incl. VAT
£572.45
incl. VAT
£477.04 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| AMin. mounting holes distance | 135 mm |
|---|---|
| Application | Telescopic |
| Application range | Trailer tipping cylinder, Vehicle construction |
| BOil connection length | 40 mm |
| C1Oil connection to rod end distance | 147 mm |
| CSide shaft diameter | 35 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 112 mm |
| HMounting hole diameter - rod connection | 55 mm |
| IMounting bush outside diameter | 95 mm |
| LMin. length | 397 mm |
| Long description | Telescopic cylinders 3-stage |
| Max. capacity | 8 t |
| Max. capacity at 180 bar | 11.7 t |
| Max. capacity - stage 2 | 8.1 t |
| Max. capacity - stage 3 | 11.7 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole center to cylinder end distance | 250 mm |
| Mounting hole diameter - cylinder connection | 40 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Ball |
| Number of stages | 3 |
| Oil capacity | 3.3 l |
| Oil connections thread pitch | 1.50 mm |
| Oil connection thread diameter | M18 |
| Oil connection thread type | Metric |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 61 mm |
| Stage 2 diameter | 76 mm |
| Stage 3 diameter | 91 mm |
| Stroke | 683 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 23.5 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 25620 g |
| Dimensions | 430 × 250 × 140 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000373719
Di Natale-Bertelli Telescopic cylinder TC 5010 ball head TC5010
£2,634.81 excl.
£3,161.77 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000373833
Di Natale-Bertelli Spring TC999035
£3.80 excl.
£4.56 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373567
Di Natale-Bertelli Telescopic cylinder 10T-1510 mm TC14484
£769.70 excl.
£923.64 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373765

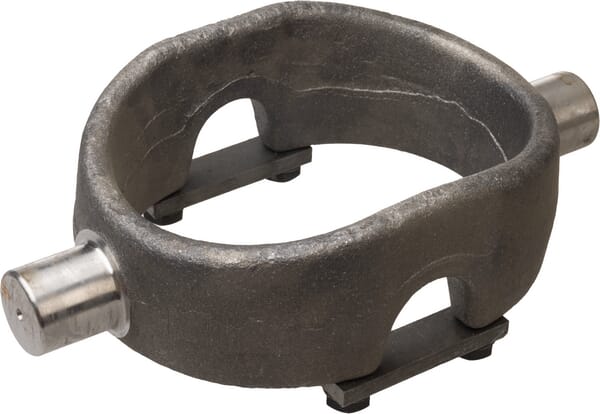

Di Natale-Bertelli Trunnion cradle TC 9-195 TC9195
£122.20 excl.
£146.64 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373652

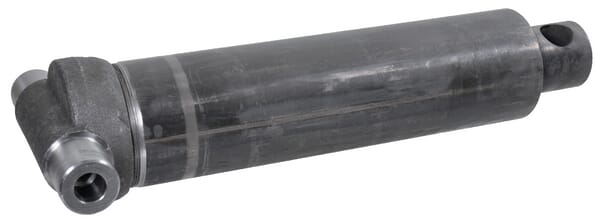

Di Natale-Bertelli Telescopic cylinder, 4-stage, stroke 1190mm TC3545F
