£646.06
excl. VAT
£775.27 incl. VAT
£775.27
incl. VAT
£646.06 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |
| BOil connection length | 40 mm |
| C1Oil connection to rod end distance | 150 mm |
| CSide shaft diameter | 40 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 124 mm |
| FMounting hole center to cylinder end distance | 225 mm |
| HMounting hole diameter - rod connection | 45 mm |
| IMounting bush outside diameter | 112 mm |
| LMin. length | 373 mm |
| Long description | Telescopic cylinders 5/6-stage |
| Max. capacity at 180 bar | 16.1 t |
| Max. capacity - stage 2 | 5.2 t |
| Max. capacity - stage 3 | 8.1 t |
| Max. capacity - stage 4 | 11.7 t |
| Max. capacity - stage 5 | 16.1 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole diameter - cylinder connection | 40 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Ball |
| Number of stages | 5 |
| Oil capacity | 5 l |
| Oil connections thread pitch | 1.50 mm |
| Oil connection thread diameter | M18 |
| Oil connection thread type | Metric |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 46 mm |
| Stage 2 diameter | 61 mm |
| Stage 3 diameter | 76 mm |
| Stage 4 diameter | 91 mm |
| Stage 5 diameter | 107 mm |
| Stroke | 1040 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 29 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 27500 g |
| Dimensions | 400 × 230 × 150 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000373566
Di Natale-Bertelli Telescopic cylinder 11T-1130 mm TC14483
£808.88 excl.
£970.66 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373610
Di Natale-Bertelli Telescopic cylinder TC 3034 ball head TC3034
£496.23 excl.
£595.48 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373768
Di Natale-Bertelli Trunnion cradle TC 9-2112 TC92112
£140.67 excl.
£168.80 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373603
Di Natale-Bertelli Telescopic cylinder TC 3024 ball head TC3024
£447.85 excl.
£537.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373943

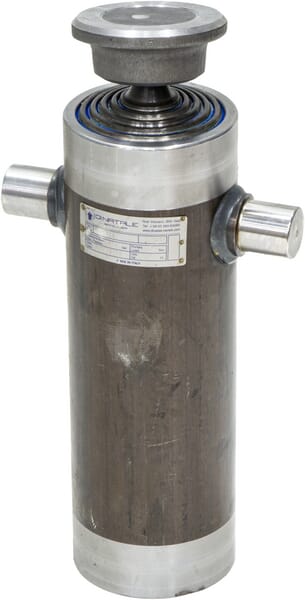

Di Natale-Bertelli Telescopic Ram ø130x1287 TCK54321S
