£2,002.57
excl. VAT
£2,403.08 incl. VAT
£2,403.08
incl. VAT
£2,002.57 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |
| BOil connection length | 50 mm |
| C1Oil connection to rod end distance | 258 mm |
| CSide shaft diameter | 50 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 215 mm |
| FMounting hole center to cylinder end distance | 375 mm |
| HMounting hole diameter - rod connection | 73 mm |
| IMounting bush outside diameter | 150 mm |
| LMin. length | 633 mm |
| Long description | Telescopic cylinders 5/6-stage |
| Max. capacity at 180 bar | 49.4 t |
| Max. capacity - stage 2 | 22.4 t |
| Max. capacity - stage 3 | 29.7 t |
| Max. capacity - stage 4 | 38.4 t |
| Max. capacity - stage 5 | 49.4 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole diameter - cylinder connection | 50 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Ball |
| Number of stages | 5 |
| Oil capacity | 31 l |
| Oil connections thread pitch | 1.50 mm |
| Oil connection thread diameter | M22 |
| Oil connection thread type | Metric |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 107 mm |
| Stage 2 diameter | 126 mm |
| Stage 3 diameter | 145 mm |
| Stage 4 diameter | 165 mm |
| Stage 5 diameter | 187 mm |
| Stroke | 2005 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 131 kg |
Compatible accessories
Parts and components that work with this product.
TC9050
Di Natale-Bertelli Mounting bracket 50mm TC9050
£33.89 excl.
£40.67 incl.
TC912

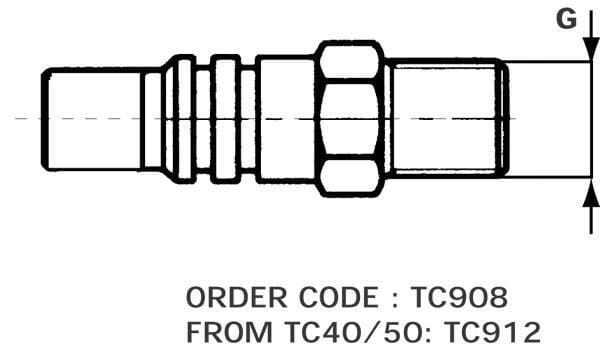

Di Natale-Bertelli Screw in adaptor 3/4" TC9-12 TC912
£11.07 excl.
£13.28 incl.
TC97215
Di Natale-Bertelli Trunnion cradle TC D7-215 TC97215 TC97215
£742.64 excl.
£891.17 incl.
TC9875
Di Natale-Bertelli Hose break valve TC75L upto D50 TC9875
£82.42 excl.
£98.90 incl.
TC9M2215L
Di Natale-Bertelli Fitting M22-15L TC9M2215L
£8.78 excl.
£10.54 incl.
TC9M2218L
Di Natale-Bertelli Male stud coupling M22-18L TC9M2218L
£9.12 excl.
£10.94 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 80000 g |
| Dimensions | 680 × 280 × 280 mm |
| Dangerous goods | No |
