£3,540.55
excl. VAT
£4,248.66 incl. VAT
£4,248.66
incl. VAT
£3,540.55 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

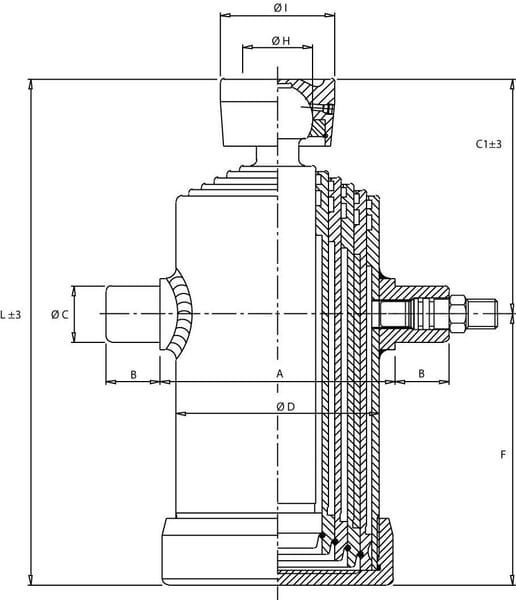

| Application | Telescopic |
|---|---|
| BOil connection length | 50 mm |
| C1Oil connection to rod end distance | 260 mm |
| CSide shaft diameter | 50 mm |
| Cylinder material | Steel |
| DIN standard | 1629 |
| DOutside diameter | 216 mm |
| FMounting hole center to cylinder end distance | 525 mm |
| HMounting hole diameter - rod connection | 73 mm |
| IMounting bush outside diameter | 150 mm |
| LMin. length | 785 mm |
| Max. capacity at 180 bar | 49.4 t |
| Max. working pressure | 180 BAR |
| Mounting hole diameter - cylinder connection | 50 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Ball |
| Number of stages | 6 |
| Oil capacity | 51 l |
| Oil connections thread pitch | 1.50 mm |
| Oil connection thread diameter | M22 |
| Oil connection thread type | Metric |
| Piston surface roughness range | 0.05-0.15 µm |
| Sealing material | Polyurethane |
| Stage 1 diameter | 88 mm |
| Stage 2 diameter | 107 mm |
| Stage 3 diameter | 126 mm |
| Stage 4 diameter | 145 mm |
| Stage 5 diameter | 165 mm |
| Stage 6 diameter | 187 mm |
| Stroke | 3265 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 171 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 206000 g |
| Dimensions | 830 × 360 × 360 mm |
| Dangerous goods | No |
