£326.51
excl. VAT
£391.81 incl. VAT
£391.81
incl. VAT
£326.51 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |

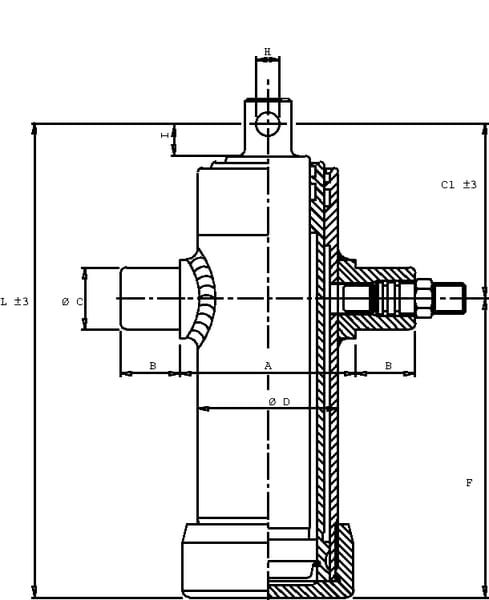

| BOil connection length | 40 mm |
| C1Oil connection to rod end distance | 100 mm |
| CSide shaft diameter | 35 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 80.5 mm |
| HMounting hole diameter - rod connection | 26 mm |
| IMounting bush outside diameter | 24 mm |
| LMin. length | 375 mm |
| Long description | Telescopic cylinders 2-stage F |
| Max. capacity at 180 bar | 5.2 t |
| Max. capacity - stage 2 | 5.2 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole center to cylinder end distance | 275 mm |
| Mounting hole diameter - cylinder connection | 40 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Bore |
| Number of stages | 2 |
| Oil capacity | 1.3 l |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 46 mm |
| Stage 2 diameter | 61 mm |
| Stroke | 525 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 14.5 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 13562 g |
| Dimensions | 404 × 185 × 92 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000373632

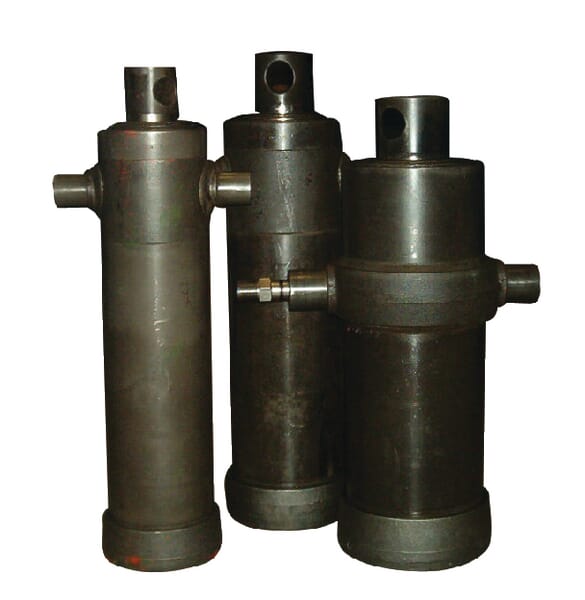

Di Natale-Bertelli Telescopic cylinder TC 3049 eye TC3049F
£859.45 excl.
£1,031.34 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000373779
Di Natale-Bertelli Hose Burst Valve 1/2" TC92722
£67.19 excl.
£80.63 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373654

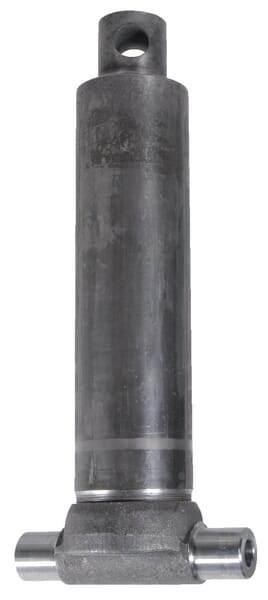

Di Natale-Bertelli Telescopic cylinder, 5-stage, stroke 2480mm TC3556F
