£335.66
excl. VAT
£402.79 incl. VAT
£402.79
incl. VAT
£335.66 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

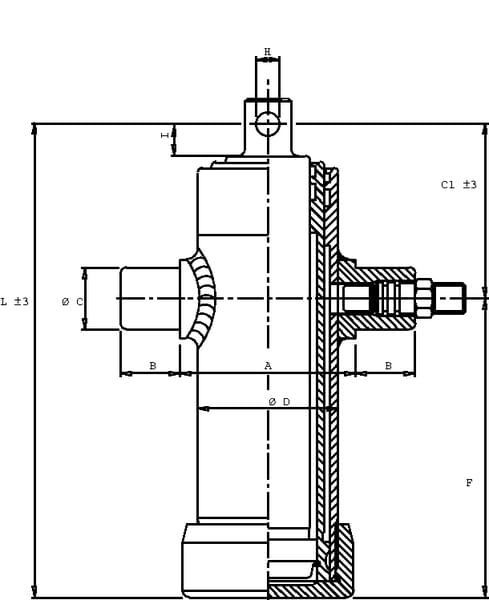

| AMin. mounting holes distance | 115 mm |
|---|---|
| Application | Telescopic |
| Application range | Trailer tipping cylinder, Vehicle construction |
| BOil connection length | 40 mm |
| C1Oil connection to rod end distance | 105 mm |
| CSide shaft diameter | 35 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 95 mm |
| HMounting hole diameter - rod connection | 31 mm |
| IMounting bush outside diameter | 32 mm |
| LMin. length | 415 mm |
| Long description | Telescopic cylinders 2-stage F |
| Max. capacity at 180 bar | 8.1 t |
| Max. capacity - stage 2 | 8.1 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole center to cylinder end distance | 310 mm |
| Mounting hole diameter - cylinder connection | 40 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Bore |
| Number of stages | 2 |
| Oil capacity | 2.3 l |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 61 mm |
| Stage 2 diameter | 76 mm |
| Stroke | 595 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 20.7 kg |
Logistics
| EAN | 8716106991594 |
|---|---|
| Unit of measure | EA |
| Weight | 20450 g |
| Dimensions | 450 × 190 × 110 mm |
| Dangerous goods | No |
