£535.13
excl. VAT
£642.16 incl. VAT
£642.16
incl. VAT
£535.13 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application | Telescopic |
|---|---|
| Cylinder material | Steel S355J2+N |
| DIN standard | 1629 |
| Includes | Cylinder |

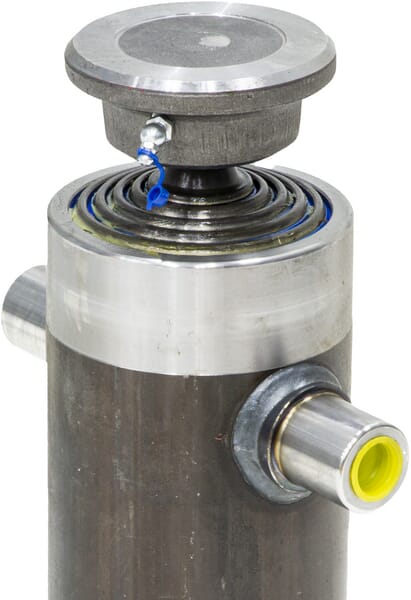

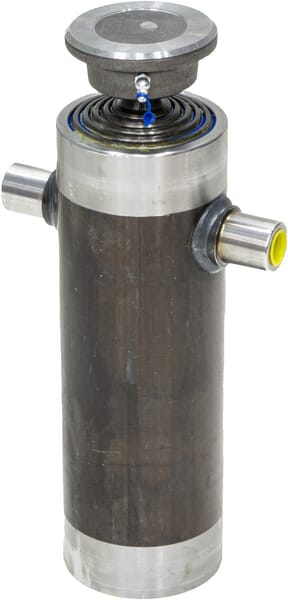

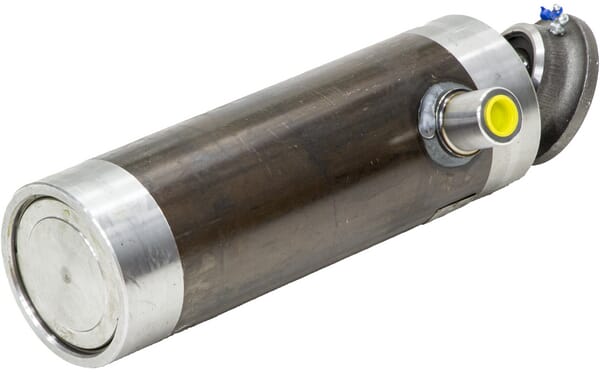

| Long description | The Telescopic Cylinders Series K, also known as Compact Ram Cylinders, are engineered to provide a long stroke while maintaining a shorter retracted length compared to standard multi-stage tipping cylinders, making them ideal for space-constrained applications. |
| Max. capacity - stage 2 | 5.2 t |
| Max. capacity - stage 3 | 8.1 t |
| Max. capacity - stage 4 | 11.7 t |
| Max. capacity - stage 5 | 11.7 t |
| Max. capacity - stage 6 | 16.1 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 200 BAR |
| Mounting hole center to cylinder end distance | 349 mm |
| Mounting type - rod side connection | Ball |
| Number of stages | 4 |
| Oil capacity | 5.9 l |
| Oil connection thread diameter | M110 |
| Oil connection to rod end distance | 152 mm |
| Piston surface roughness range | 0.05-0.15 µm |
| Product details | Kompact series, Tenifer TF1 coated plungers, Do not extend up to the end stop, Stroke limiter : VFCTS12 recommended |
| Pros | High efficiency, Light, modern design, Excellent running properties, High durability and long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 45 mm |
| Stage 2 diameter | 60 mm |
| Stage 3 diameter | 75 mm |
| Stage 4 diameter | 90 mm |
| Stroke | 1354 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 30700 g |
| Dimensions | 600 × 430 × 250 mm |
| Dangerous goods | No |
