£18.28
excl. VAT
£21.94 incl. VAT
£21.94
incl. VAT
£18.28 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Bend radius | 70 mm |
|---|---|
| Burst pressure | 480 BAR |
| DN | 12 mm |
| Hose inside diameter | 12.7 mm |
| Hose outside diameter | 15.7 mm |
| Long description | Application range:, For use in compressors, feeding systems and equipment in the pharmaceutical sector, Suitable for fuels, solvents, acids, gases, etc., The braid made of stainless steel 304 is not suitable for sea water |
| Material inside | Teflon (PTFE) |
| Material outside | Stainless steel AISI 304 |
| Max working pressure | 120 BAR |
| Max working temperature | 260 °C |
| Medium | Oxygen, Fuel, Mineral oil, Solvent, Chemicals |
| Min working temperature | -70 °C |
| Norm | SAE 100 R14 |
| Number of plies | 1 |
| Qty. Rounding | 0.01 |
| Reinforcement material | n/a |
| Reinforcement type | n/a |
| Type | Hydraulic high pressure hose |
| Unit | Metre |
| Wall thickness | 0.7 mm |
| Weight | 0.21 kg/m |
Logistics
| EAN | 8432770094262 |
|---|---|
| Unit of measure | MTR |
| Weight | 210 g |
| Dimensions | 1000 × 15 × 15 mm |
| Dangerous goods | No |
You might also like
BPA000340567
Dicsa Cutting ring 8L/S DIN 3861 S.S. PR08LSRVS
£1.53 excl.
£1.84 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000344103
Dicsa Insert DN06-M14x1.5- 8L S.S. PGLO614RVS
£12.88 excl.
£15.46 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000337576
Dicsa Insert DN13-1/2-BSP-90º S.S. PF13890RVS
£24.89 excl.
£29.87 incl.
In stock
Expected to ship on Tuesday 22 September

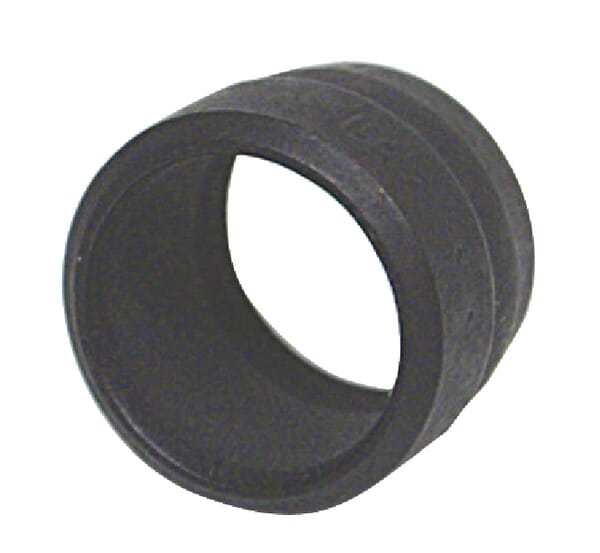

BPA000340586
Dicsa Cutt. ring 12L/S DIN 3861 S.S. PR12LSRVS
£1.63 excl.
£1.96 incl.
Backorder available
Usually ships within 3–8 weeks

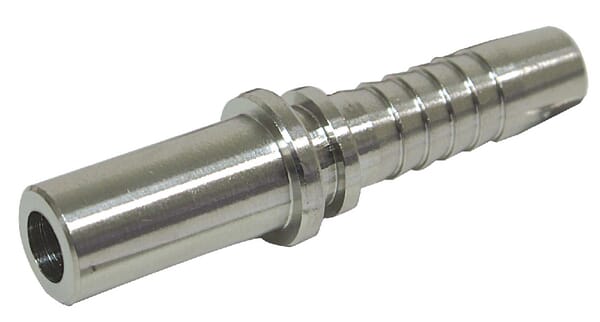

BPA000342846
