£62.21
excl. VAT
£74.65 incl. VAT
£74.65
incl. VAT
£62.21 excl. VAT
In stock
Expected to ship on Tuesday 22 September

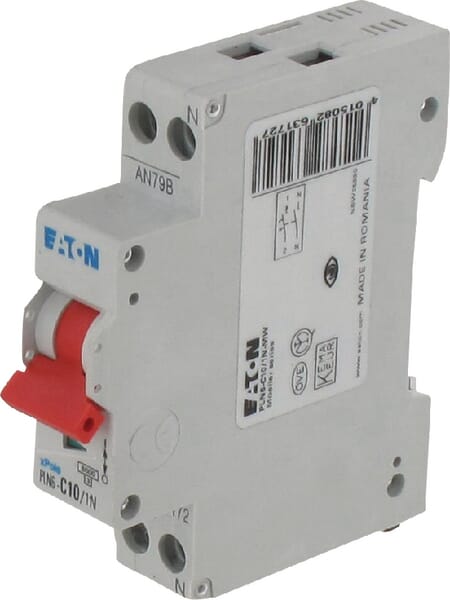

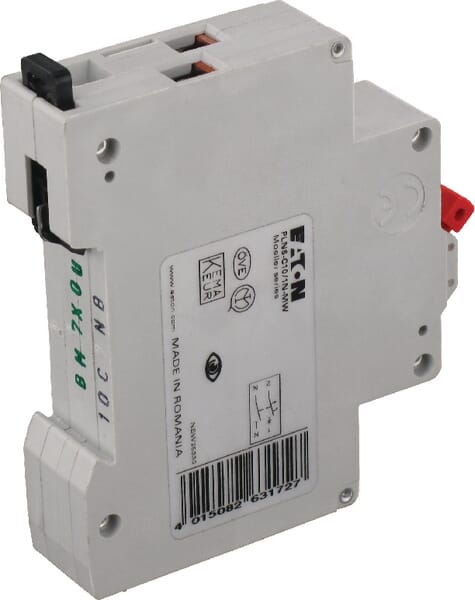

Product details
| Additional equipment possible | Yes |
|---|---|
| Ambient temperature during operating | -25.0 °C |
| Built-in depth | 70.5 mm |
| Concurrently switching neutral conductor | Yes |
| Connectable conductor cross section multi-wired | 1-25 mm² |
| Connectable conductor cross section solid-core | 1-25 mm² |
| Current limiting class | 3 |
| Explosion-proof | No |
| Flush-mounted installation | No |
| Frequency | 50-60 Hz |
| Insulation class | 20 |
| Manufacturer Product ID | 263172 |
| Number of poles | 2 |
| Number of protected poles | 1 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Power loss | 1.9 W |
| Rated current | 10 A |
| Rated impulse withstand voltage Uimp | 4 V |
| Rated insulation voltage Ui | 440 V |
| Rated short-circuit breaking capacityat 230 V | 0 kA |
| Rated short-circuit breaking capacityat 400 V | 0 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 6 kA |
| Rated voltage | 230 V |
| Release characteristic | C |
| Technical info | The Xpole circuit breakers from Moeller Electric program consists of a number of different types of circuit-breakers:, PLS4 series: nominal switching capacity 4.5 kA (IEC / EN 60898) C characteristic,, PLN6 series: nominal switching capacity 6 kA (IEC / EN 60898) B and C characteristic,, PLS6 series: nominal switching capacity 6 kA (IEC / EN 60898) B and C characteristic, PLSM series: nominal switching capacity 10 kA (IEC / EN 60898) B, C and D characteristic,, PLHT series: nominal switching capacity to 25 kA (IEC / EN 60947-2) C and D characteristic., Obviously the above series is also a wide range of accessories available, such as auxiliary contacts |
| Unit | Each |
| Voltage type | AC |
| Width in number of modular spacings (mm) | 1 mm |
Logistics
| EAN | 4015082631727 |
|---|---|
| Unit of measure | EA |
| Weight | 115 g |
| Dimensions | 92 × 83 × 44 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000367208

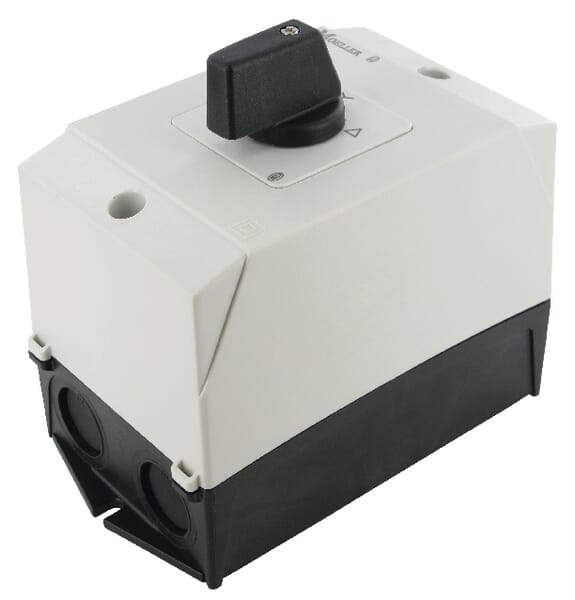

Eaton Star delta switch 6.5 kW T048410I1
£133.07 excl.
£159.68 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000308298

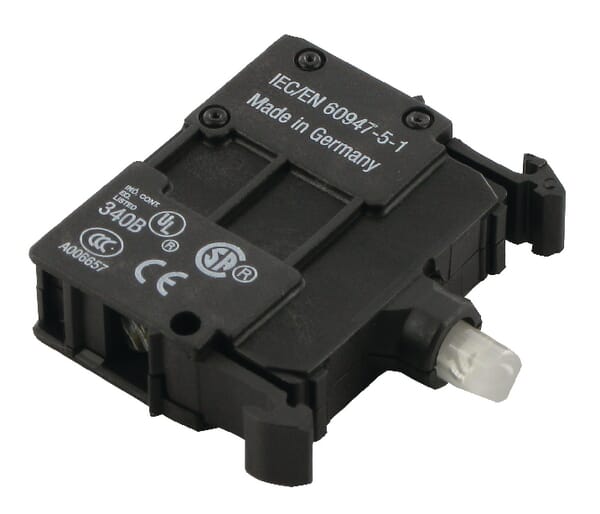

Eaton Green LED elem. 12-30 V front M22LEDG
£12.85 excl.
£15.42 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000308374
Eaton Joystick position 2. horizontal M22WRJ2H
£106.79 excl.
£128.15 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000267131

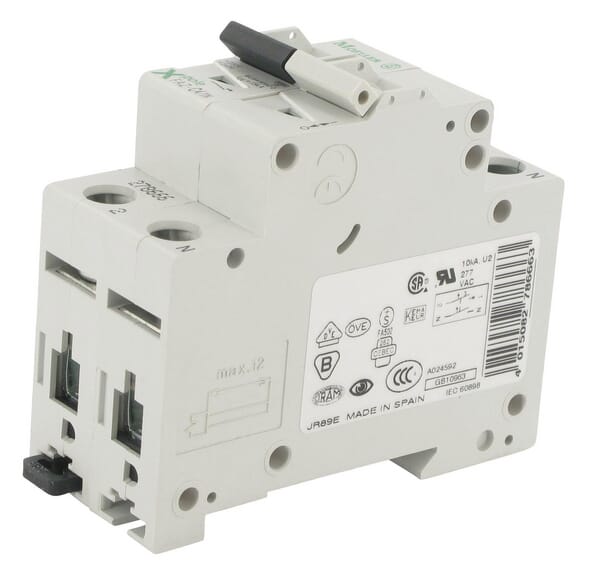

Eaton Miniature circuit-breaker FAZC41N
£102.16 excl.
£122.59 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000247603
Eaton Contactor 17A 7,5kW DILM1710400V50HZ
£86.48 excl.
£103.78 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000252382

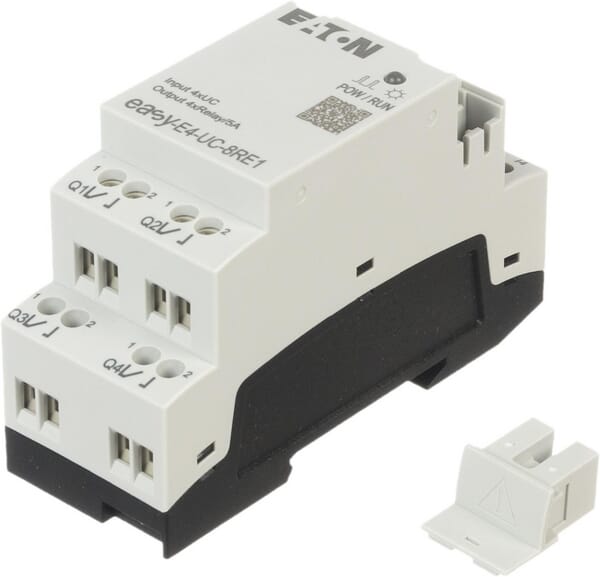

Eaton Digital Input/ Output EASYE4UC8RE1
£119.33 excl.
£143.20 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping
BPA000327350

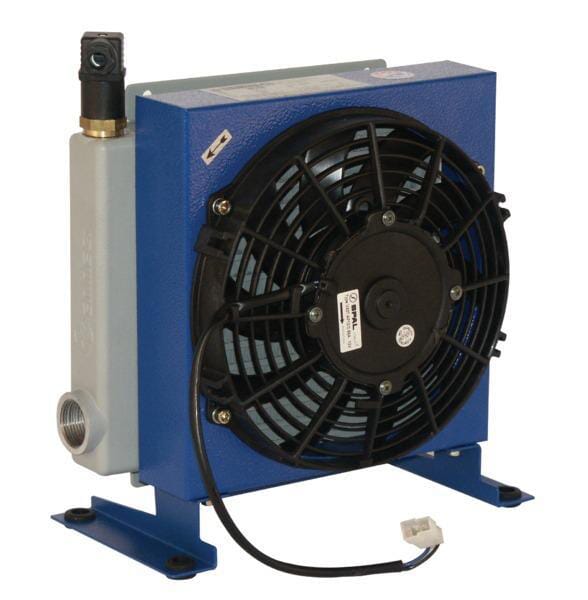

Emmegi Oil-cooler by-pass 24V 48-60˚C OK2015KBV24301
