£665.54
excl. VAT
£798.65 incl. VAT
£798.65
incl. VAT
£665.54 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

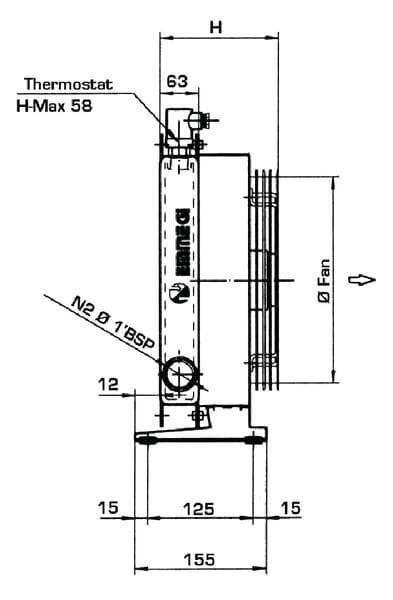

| Connection thread diameter | 1 Inch |
|---|---|
| Cooling medium flow type | Suction |
| Depth | 157 mm |
| Fan outside diameter | 225 mm |
| Includes | Aluminium radiator, Support, Impeller / electric motor, voltage depends on version, Temperature switch, Connector for connecting temperature switch / DC motor |
| Insulation class | 64 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system. |
| Material | Plastic, Aluminium, Steel |
| Max. working flow | 70 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 73 dB(A) |
| Nominal voltage | 24 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Pros | Compact flush mounting, Complete unit, Increased efficiency, Long component service life |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 40 - 48 °C thermostat. |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 6.5 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7460 g |
| Dimensions | 360 × 340 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327370

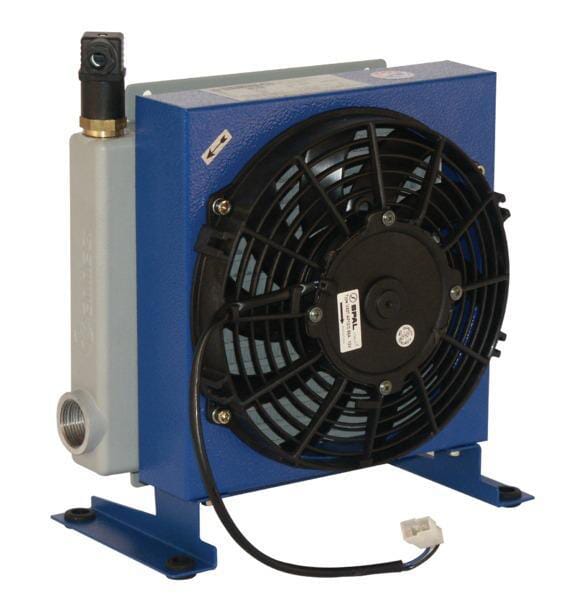

Emmegi Oil-cooler (24V) 38-50'C 2040K-24-2-01 OK2040K24201
£850.01 excl.
£1,020.01 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327433

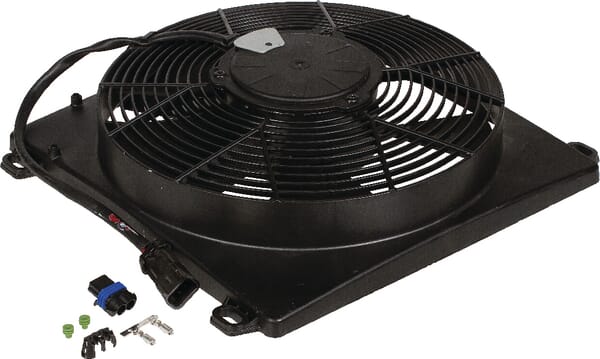

Emmegi Fan, with suction 12-V 2MV-2 OK92MV212S
£154.61 excl.
£185.53 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327374
Emmegi Oil-cooler (12V) 38-50'C 2050K-12-2-01 OK2050K12201
£1,215.88 excl.
£1,459.06 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000327422

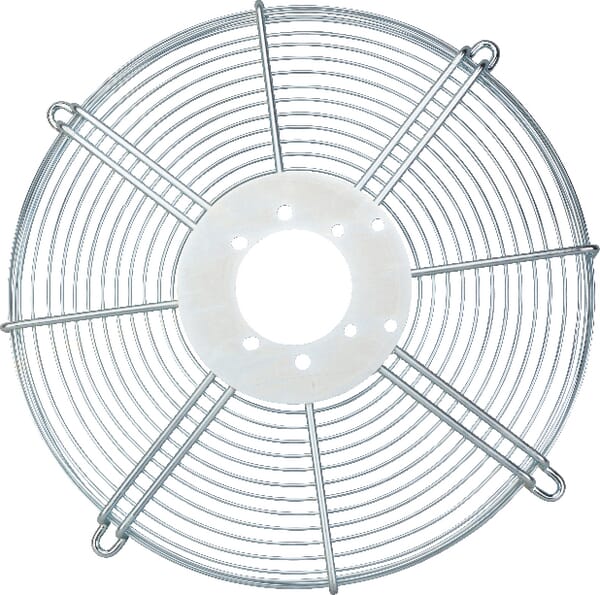

Emmegi Fan grate OK 2040 OK9204062
£68.14 excl.
£81.77 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000327445

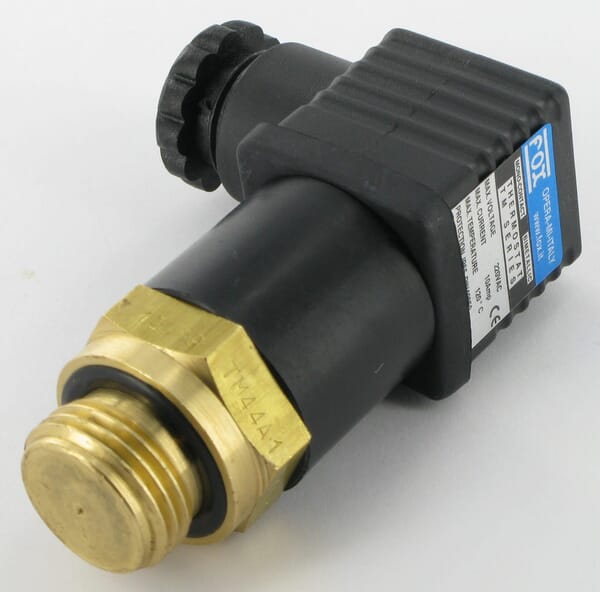

Emmegi Temperature Switch 28-40°C Oil-cooler OK93038
£75.05 excl.
£90.06 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327442

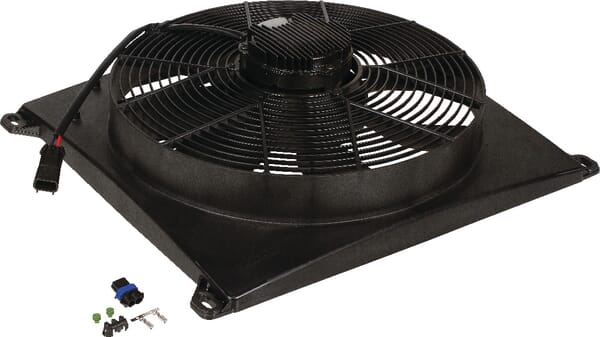

Emmegi Fan, with suction 12-V 2MV-5 OK92MV512S
