£1,022.58
excl. VAT
£1,227.10 incl. VAT
£1,227.10
incl. VAT
£1,022.58 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Angle | 5 ° |
|---|---|
| Application range | Process water, waste water, sewage sludge, slurry and other biomasses, They differ only in the material of the rubber bellows from the ERV special types with the coloured rings. As a result, the media and temperature resistance is limited. As regards the normal water, environment and ageing resistance, as well as the noise and vibration damping and the permitted range of movement, they are comparable with the ERV special types |
| Benefits | Simple to use |
| Connection holes circle diameter | 400 mm |
| Connection holes diameter | 22 mm |
| Consists of | The rubber compensators are supplied ready for installation, Additional seals are usually not necessary |

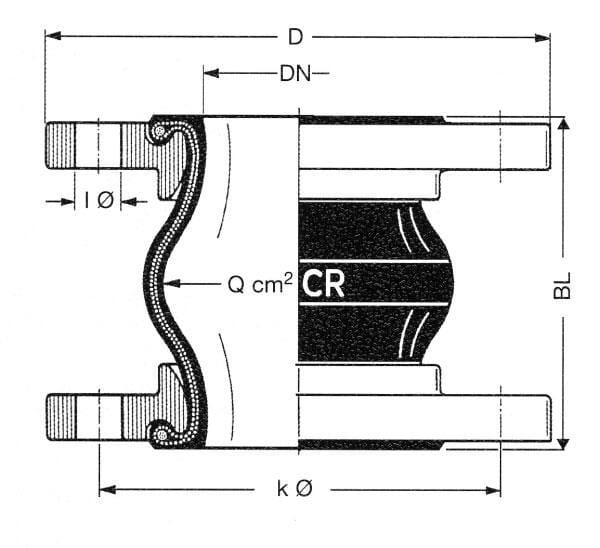

| Details | Elastic pipe connector ERV type CR (black) with rotating steel flanges |
| Inside diameter | 300 mm |
| Nominal pressure | 10 BAR |
| Number of connection holes | 12 |
| Outside diameter | 445 mm |
| Technical info | The information for the permitted range of movement applies to temperatures up to 50°C. At operating temperatures of 70°C, the permissible utilisation level is 80%, The value "max. torque (Nm)" indicates the maximum tightening torque of the flange bolts |
| Total length | 130 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 29000 g |
| Dimensions | 450 × 450 × 130 mm |
| Dangerous goods | No |
