£507.59
excl. VAT
£609.11 incl. VAT
£609.11
incl. VAT
£507.59 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Angle | 20 ° |
|---|---|
| Application range | Mineral oil products and fuels up to 50% aromatics and methanol content, cooling water with mineral oil-based anti-corrosion agents |
| Benefits | Simple to use |

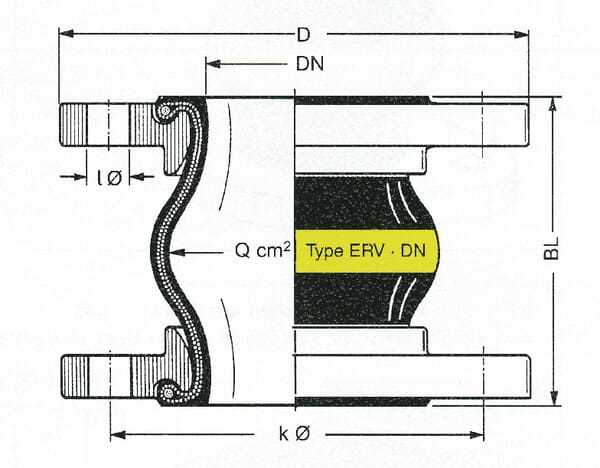

| Connection holes circle diameter | 180 mm |
| Connection holes diameter | 18 mm |
| Consists of | The rubber compensators are supplied ready for installation, Additional seals are usually not necessary |

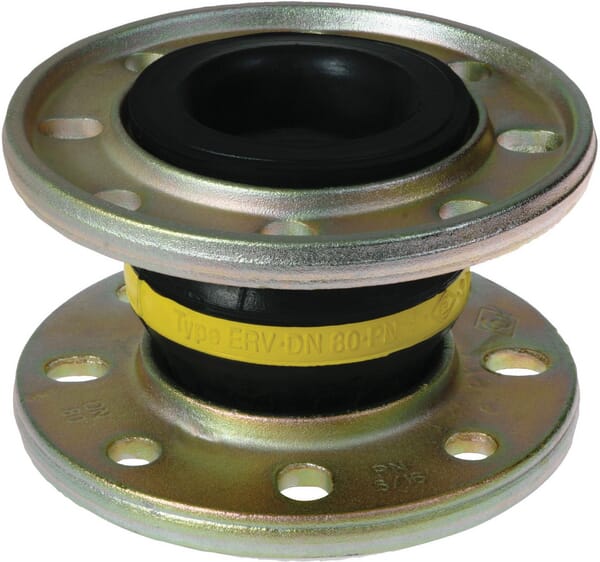

| Details | Elastic pipe connector ERV type yellow ring with rotating steel flanges in high-tech design |
| Inside diameter | 100 mm |
| Nominal pressure | 16 BAR |
| Number of connection holes | 8 |
| Outside diameter | 220 mm |
| Technical info | The information for the permitted range of movement applies to temperatures up to 50°C. At operating temperatures of 70°C, the permissible utilisation level is 75%, and at operating temperatures up to 90°C 60%, The value "max. torque (Nm)" indicates the maximum tightening torque of the flange bolts |
| Total length | 160 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7820 g |
| Dimensions | 220 × 220 × 125 mm |
| Dangerous goods | No |
