£370.30
excl. VAT
£444.36 incl. VAT
£444.36
incl. VAT
£370.30 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Cooling medium flow type | Suction |
|---|---|
| Depth | 160 mm |
| Fan outside diameter | 167 mm |
| Includes | Aluminium radiator, Support, Impeller/electric motor, voltage according to version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 64 |

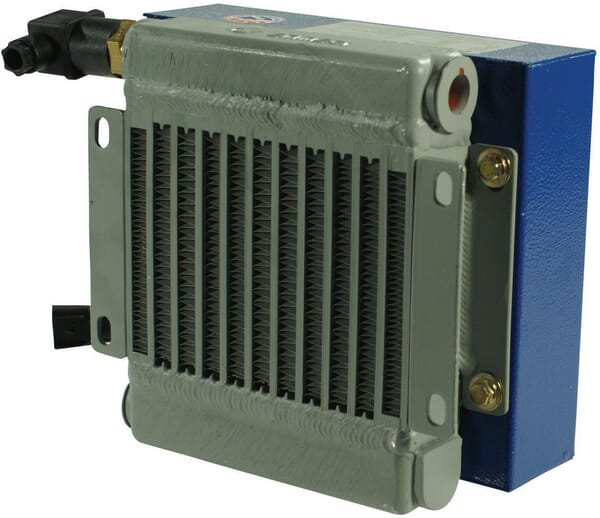

| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50ºC thermostat. A controlled oil temperature increases the efficiency and lifetime of the components in the system. |
| Max. working flow | 40 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 75 dB(A) |
| Nominal voltage | 12 V |

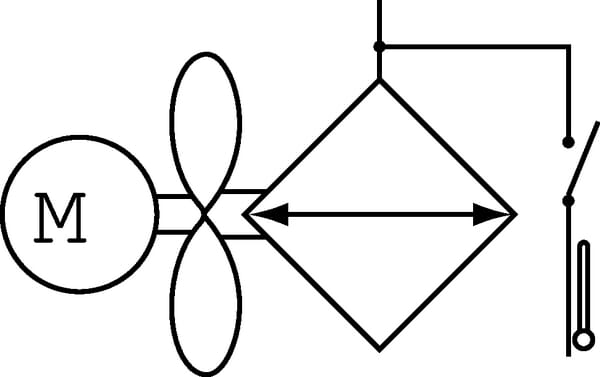

| Product details | Temperature switch 38-50ºC, Maximum temperature: 120°C, The motor must be switched via a relay |
| Pros | Compact build-in, Complete unit, Increased efficiency, Long component service life |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4957 g |

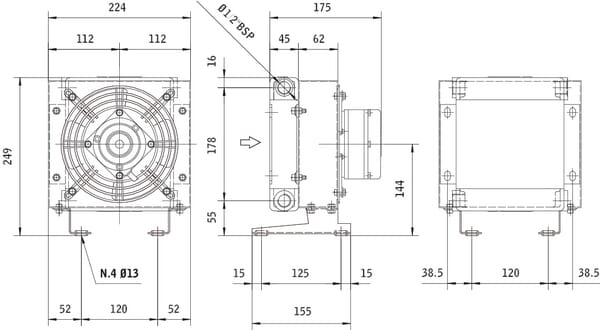

| Dimensions | 317 × 220 × 340 mm |
| Dangerous goods | No |
You might also like
BPA000233288

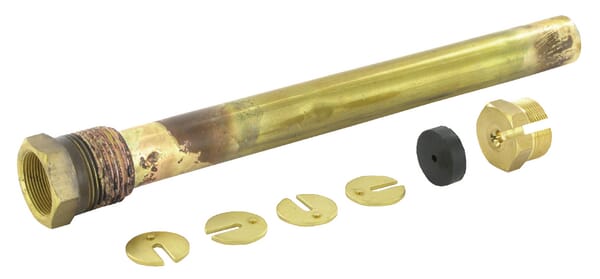

Emmegi Guard tube AVTA SENSOR AVTA920BB
£44.48 excl.
£53.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327369
Emmegi Oil-cooler (12V) 38-50'C 2040K-12-2-01 OK2040K12201
£948.94 excl.
£1,138.73 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327484
Emmegi Oil cooler MG- 80-1155-4 OKMG801155
£912.51 excl.
£1,095.01 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327371
Emmegi Oil-cooler (24V) 48-60'C 2040 OK2040K24301
£1,041.02 excl.
£1,249.22 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327414
Emmegi Electric fan with motor 220V 250mm OK9202440
£271.93 excl.
£326.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327368

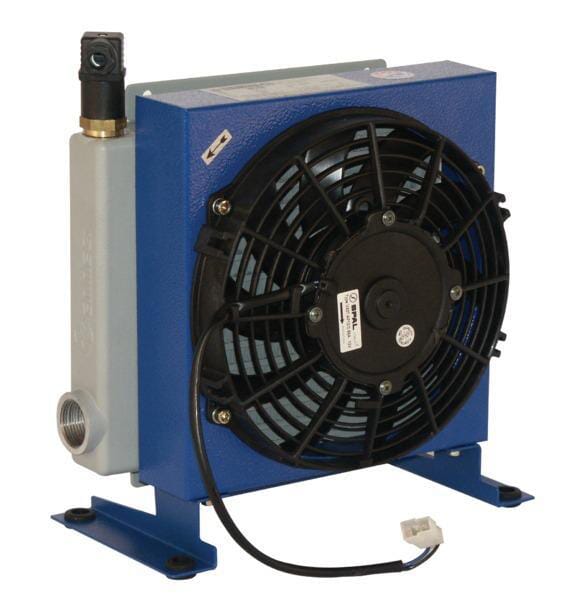

Emmegi Oil-cooler (230V) 38-50'C 2040K-01-2-01 OK2040K01201
