£1,041.02
excl. VAT
£1,249.22 incl. VAT
£1,249.22
incl. VAT
£1,041.02 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

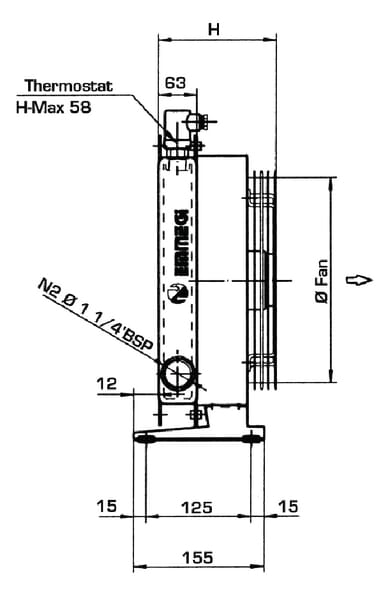

| Connection thread diameter | 1-1/4 Inch |
|---|---|
| Cooling medium flow type | Suction |

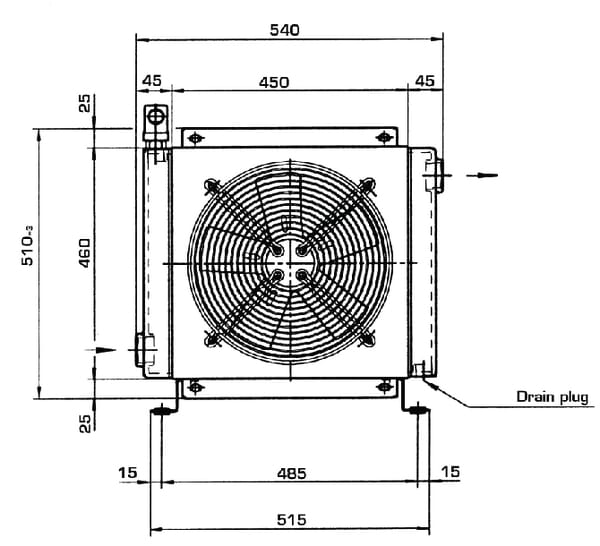

| Depth | 238 mm |
| Fan outside diameter | 385 mm |
| Includes | Aluminium radiator, Support, Impeller/electric motor, voltage according to version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 68 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of the components in the system. |

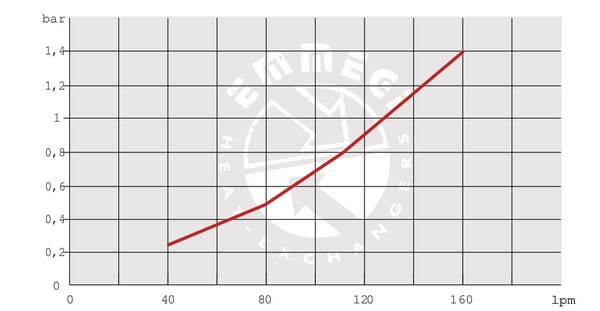

| Max. working flow | 140 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 79 dB(A) |
| Nominal voltage | 24 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Pros | Compact flush mounting, Complete unit, Increased efficiency, Long component service life |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 48 - 60 °C thermostat. |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 20 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 16238 g |

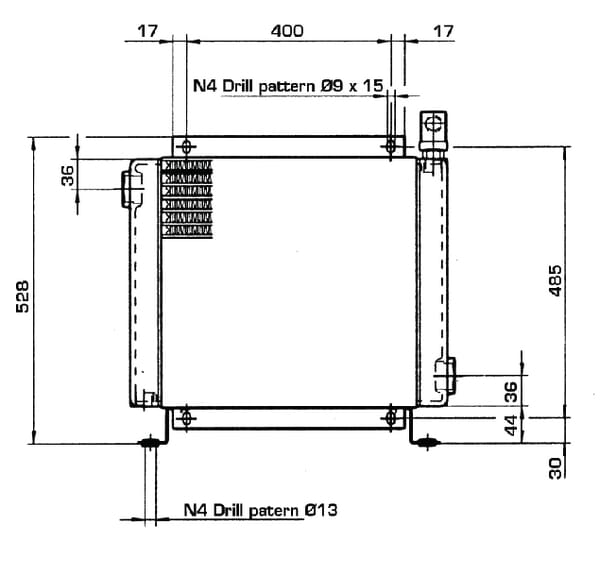

| Dimensions | 560 × 580 × 260 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327345
Emmegi Oil-cooler (12V) 38-50'C 2015K-12-2-01 OK2015K12201
£296.69 excl.
£356.03 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327424

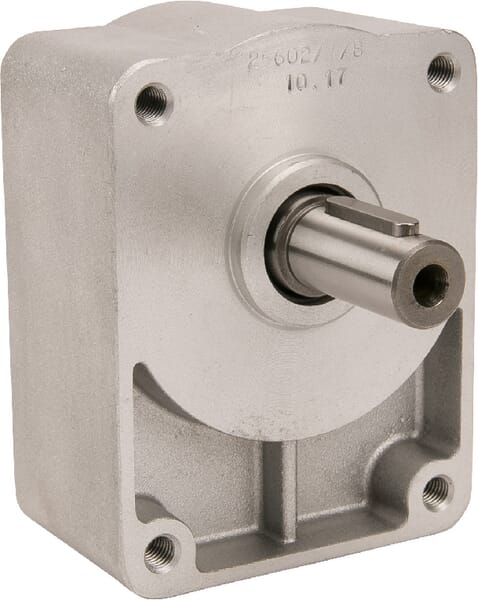

Emmegi Support GR-2 Hydr Motor OK 20 OK9204070
£138.88 excl.
£166.66 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327359

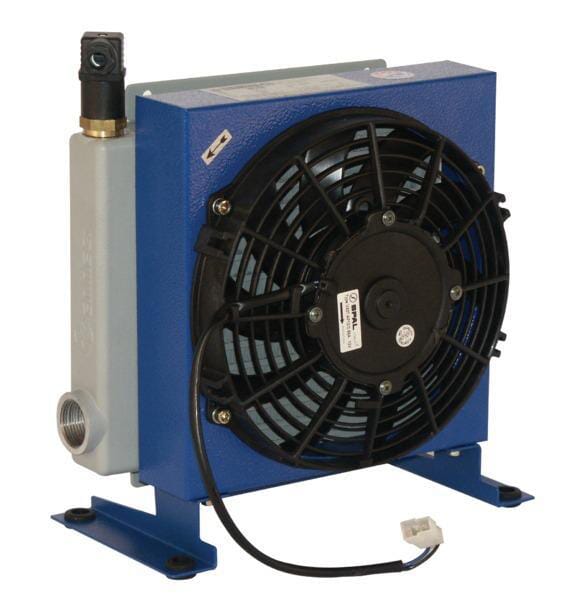

Emmegi Oil-cooler (24V) 38-50'C 2024K-24-2-01 OK2024K24201
£539.31 excl.
£647.17 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000327441

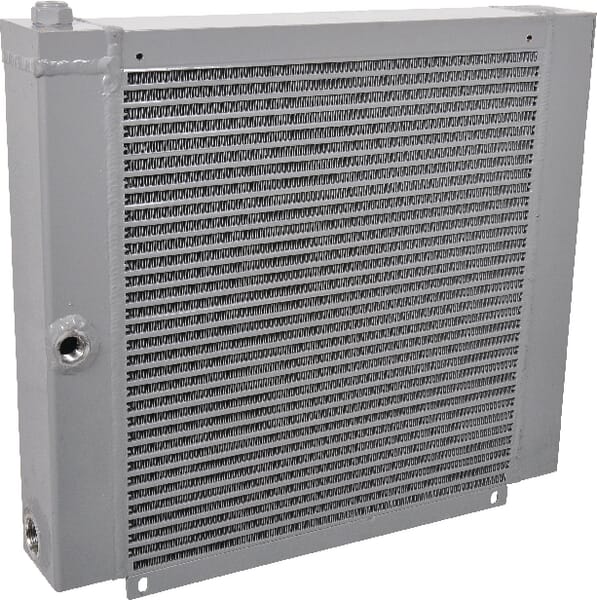

Emmegi Radiator 2MV-5 bypass OK92MV5
£1,532.27 excl.
£1,838.72 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327386

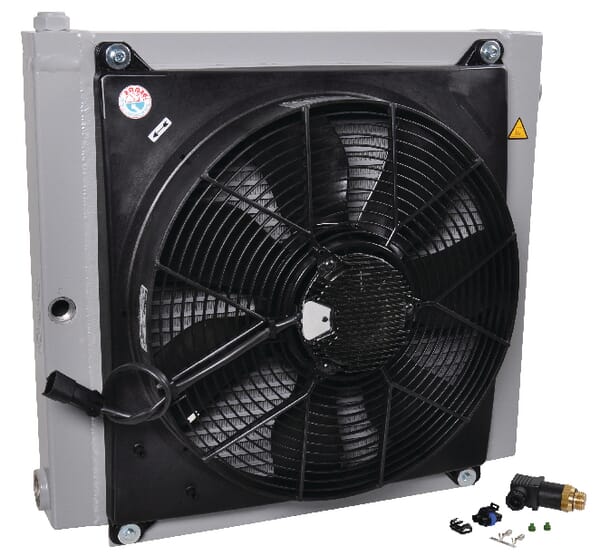

Emmegi Oil-cooler (12V) 48–60°C MV-4 OK2MV412301
