£992.94
excl. VAT
£1,191.53 incl. VAT
£1,191.53
incl. VAT
£992.94 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

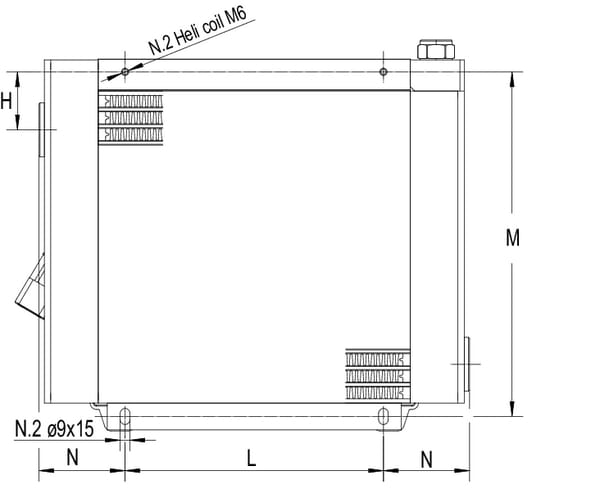

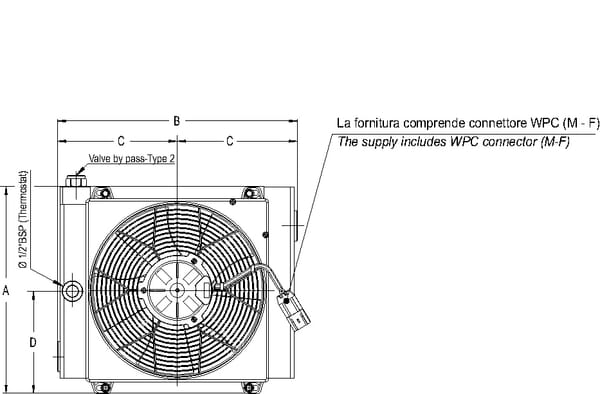

| AHeight | 515 mm |
|---|---|
| Amperage | 20.8 A |
| BWidth | 560 mm |
| Bypass | Yes |
| Connection thread diameter | 1-1/4 Inch |
| Cooling medium flow type | Suction |
| Drive motor power | 270 W |

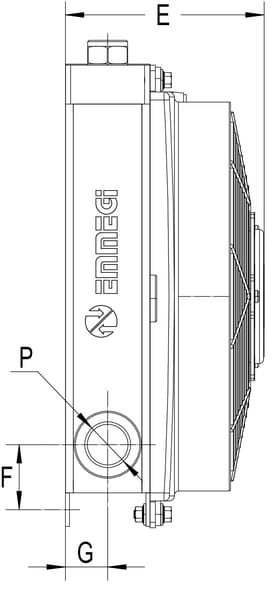

| EDepth | 240 mm |
| Fan outside diameter | 385 mm |
| Includes | Aluminium radiator, Electric motor with impeller, Temperature switch 48-60ºC, Bypass, Plug connection, Without mounting base |
| Insulation class | 68 |
| LMounting holes distance | 400 mm |
| Long description | Oil coolers are used to improve heat exchange between oil and environment. The 2MV coolers are fitted with a thermostat as well as a bypass as standard. |
| Material | Plastic, Aluminium |
| Max. working flow | 140 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 78 dB(A) |
| Nominal voltage | 12 V |
| Product details | Outstanding value for money, With thermostat and bypass, Highly suitable for mobile applications. |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 48 - 60 °C thermostat. |
| Thermostat working temperature | 48-60 |
| Unit | Each |
| Weight | 16.5 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1800 g |
| Dimensions | 600 × 600 × 280 mm |
| Dangerous goods | No |
