£454.71
excl. VAT
£545.65 incl. VAT
£545.65
incl. VAT
£454.71 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connection thread diameter | 1 Inch |
|---|---|
| Cooling medium flow type | Suction |

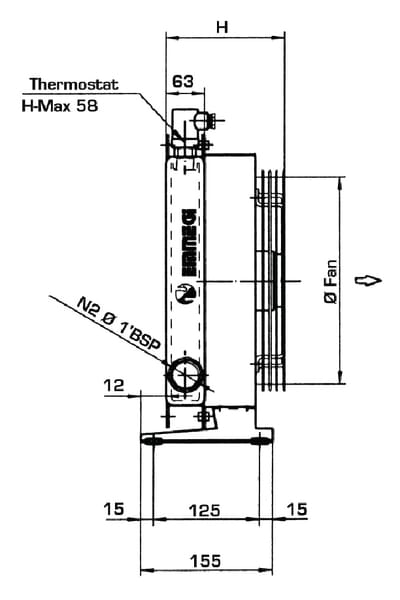

| Depth | 168 mm |
| Fan outside diameter | 200 mm |

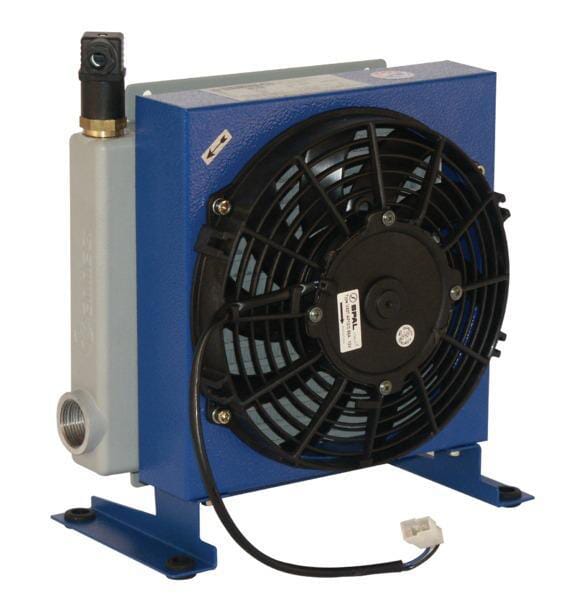

| Includes | Aluminium radiator, Support, Impeller / electric motor, voltage depends on version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 55 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system. |
| Material | Plastic, Aluminium, Steel |
| Max. working flow | 90 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 68 dB(A) |
| Nominal voltage | 230 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Pros | Compact build-in, Complete unit, Increased efficiency, Long component service life |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 40 - 48 °C thermostat. |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 8 kg |
Compatible accessories
Parts and components that work with this product.
OK93038
Emmegi Temperature Switch 28-40°C Oil-cooler OK93038
£75.05 excl.
£90.06 incl.
OK95060
Emmegi Temperature Switch 48-60°C Oil-cooler OK95060
£58.10 excl.
£69.72 incl.
OK96070
Emmegi Temperature Switch 58-70°C Oil-cooler OK96070
£74.53 excl.
£89.44 incl.
OK97080
Emmegi Temperature Switch 68-80°C Oil-cooler OK97080
£74.53 excl.
£89.44 incl.
OK98090
Emmegi Temperature Switch 78-90°C Oil-cooler OK98090
£74.53 excl.
£89.44 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7986 g |
| Dimensions | 364 × 212 × 345 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327479

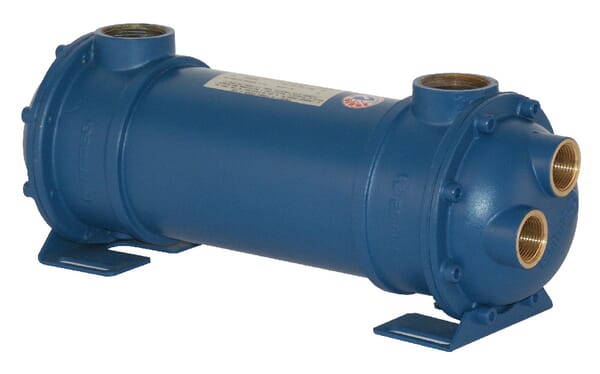

Emmegi Oil cooler MG- 80- 150-4 OKMG800150
£512.85 excl.
£615.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327375

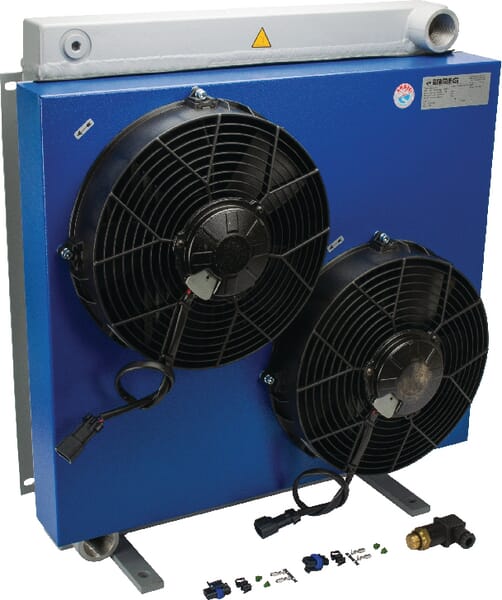

Emmegi Oil-cooler (24V) 38-50'C 2050K-24-2-01 OK2050K24201
£1,342.19 excl.
£1,610.63 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327457
Emmegi Motor/Cooling fan/GrateT HP18/24 24VDC OK9HPA182435
£351.10 excl.
£421.32 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327430
Emmegi Cooling fan 2050-24VDC motor/WA 280mm OK92050352
£402.37 excl.
£482.84 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327413

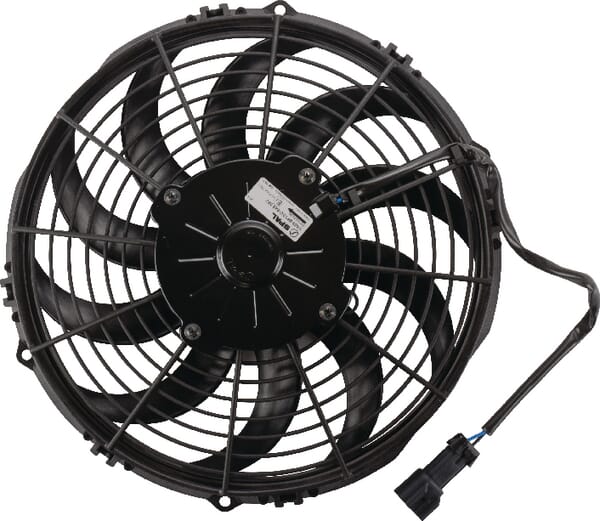

Emmegi Cooling fan 2024-24VDC OK9202435NB
£215.11 excl.
£258.13 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327408

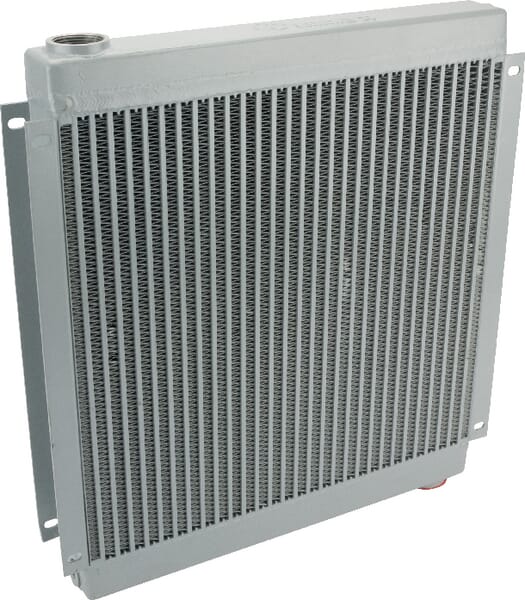

Emmegi Cooler by-pass 2020 OK92020150BV
