£415.03
excl. VAT
£498.04 incl. VAT
£498.04
incl. VAT
£415.03 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Connection thread diameter | 1 Inch |
|---|---|
| Cooling medium flow type | Suction |
| Depth | 175 mm |
| Fan outside diameter | 225 mm |
| Includes | Aluminium radiator, Support, Impeller / electric motor, voltage depends on version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 68 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system. |
| Material | Plastic, Aluminium, Steel |
| Max. working flow | 90 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 67 dB(A) |
| Nominal voltage | 24 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Pros | Compact build-in, Complete unit, Increased efficiency, Long component service life |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 40 - 48 °C thermostat. |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 7 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7500 g |
| Dimensions | 350 × 330 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327480

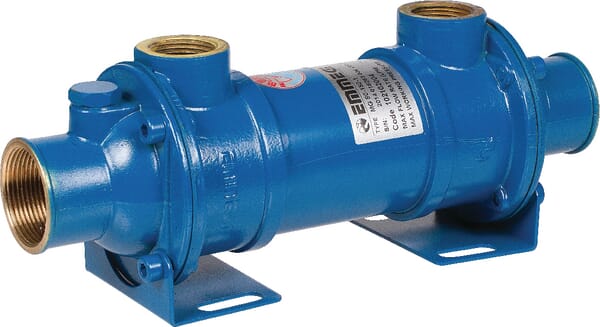

Emmegi Oil cooler MG- 80- 150-1 OKMG8001501
£550.36 excl.
£660.43 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000327375
Emmegi Oil-cooler (24V) 38-50'C 2050K-24-2-01 OK2050K24201
£1,342.19 excl.
£1,610.63 incl.
In stock
Expected to ship on Friday 18 September
BPA000327405

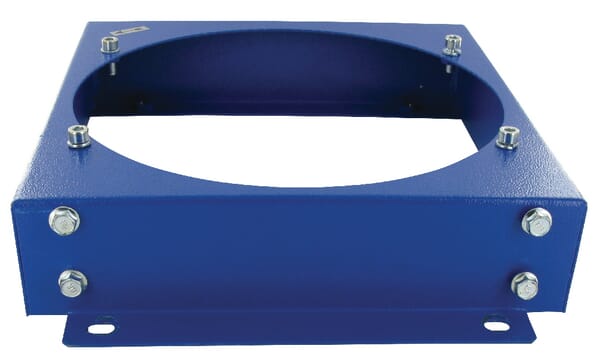

Emmegi Fan surround 2015-20 OK9201595
