£850.01
excl. VAT
£1,020.01 incl. VAT
£1,020.01
incl. VAT
£850.01 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

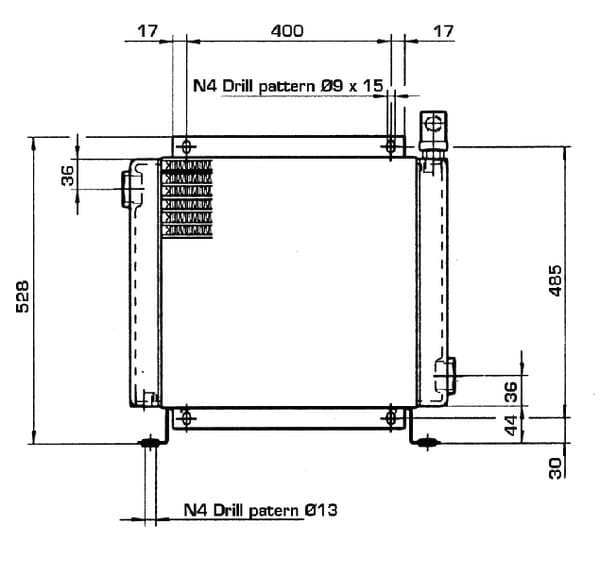

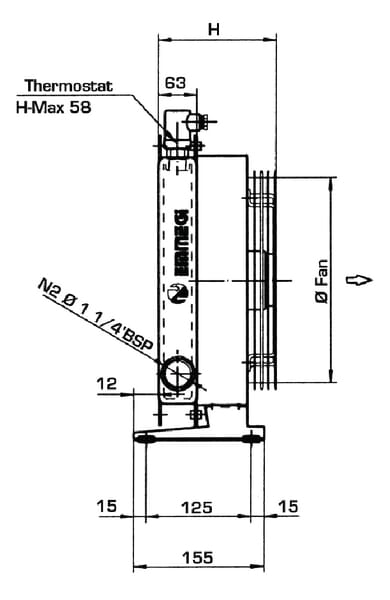

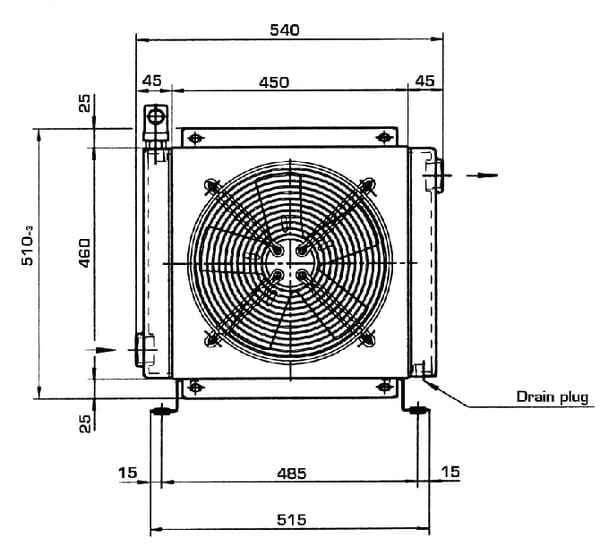

| Connection thread diameter | 1-1/4 Inch |
|---|---|
| Cooling medium flow type | Suction |
| Depth | 238 mm |
| Fan outside diameter | 385 mm |
| Includes | Aluminium radiator, Support, Impeller/electric motor, voltage according to version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 68 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of the components in the system. |

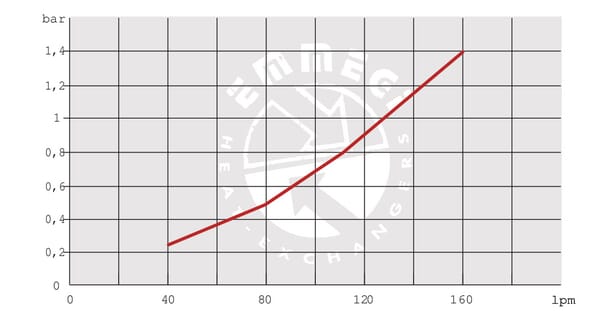

| Max. working flow | 140 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 79 dB(A) |
| Nominal voltage | 24 V |

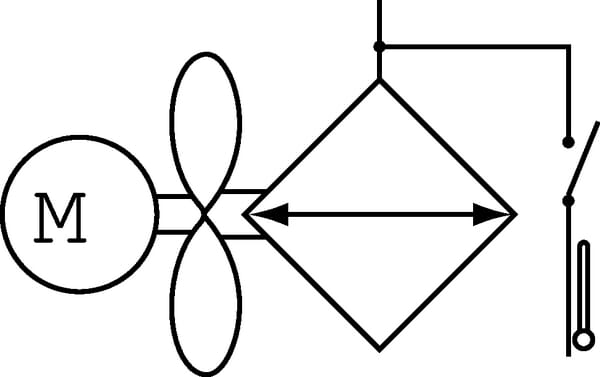

| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Pros | Compact flush mounting, Complete unit, Increased efficiency, Long component service life |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 48 - 60 °C thermostat. |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 20 kg |
Compatible accessories
Parts and components that work with this product.
4RA965400071
Hella Relay 4RA965400071
£11.71 excl.
£14.05 incl.
OK93038
Emmegi Temperature Switch 28-40°C Oil-cooler OK93038
£75.05 excl.
£90.06 incl.
OK95060
Emmegi Temperature Switch 48-60°C Oil-cooler OK95060
£58.10 excl.
£69.72 incl.
OK96070
Emmegi Temperature Switch 58-70°C Oil-cooler OK96070
£74.53 excl.
£89.44 incl.
OK97080
Emmegi Temperature Switch 68-80°C Oil-cooler OK97080
£74.53 excl.
£89.44 incl.
OK98090
Emmegi Temperature Switch 78-90°C Oil-cooler OK98090
£74.53 excl.
£89.44 incl.
OK9NTCTEMPS
Emmegi NTC temperature sensor 1/2" BSP OK9NTCTEMPS
£43.68 excl.
£52.42 incl.
OK9SSSCRF
Emmegi Soft start en speed control with reverse (max 25A) OK9SSSCRF
£300.84 excl.
£361.01 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 22000 g |
| Dimensions | 570 × 260 × 560 mm |
| Dangerous goods | No |
You might also like
BPA000327420
Emmegi Cooling fan 2030 AC OK9203085
£48.13 excl.
£57.76 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327443

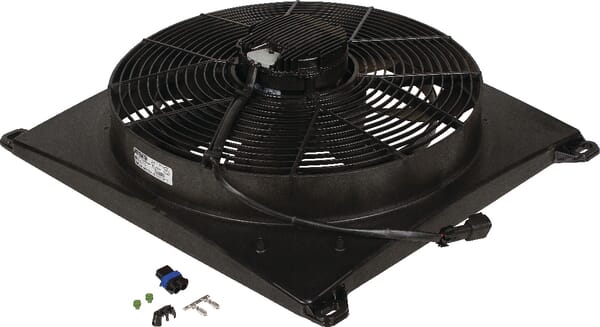

Emmegi Fan, with suction 24-V 2MV-5 OK92MV524S
£359.36 excl.
£431.23 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327416
Emmegi Cooling fan cap 2030 OK92030100
£100.30 excl.
£120.36 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327352
Emmegi Oil-cooler (230V) 38-50'C 2020K-01-2-01 OK2020K01201
£454.71 excl.
£545.65 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327382

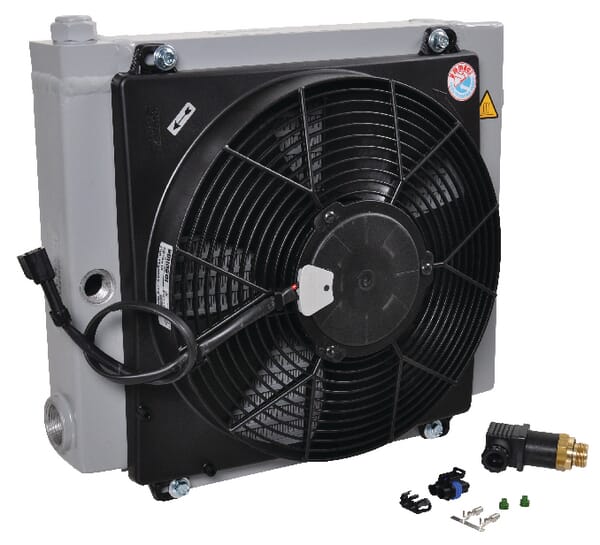

Emmegi Oil-cooler (12V) 48–60°C MV-2 OK2MV212301
£634.44 excl.
£761.33 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000327425

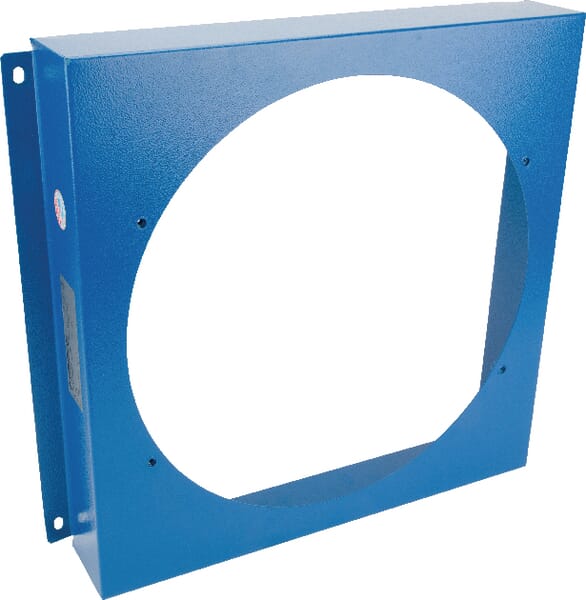

Emmegi Fan Roast 2040 Ac OK9204080
