£977.35
excl. VAT
£1,172.82 incl. VAT
£1,172.82
incl. VAT
£977.35 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

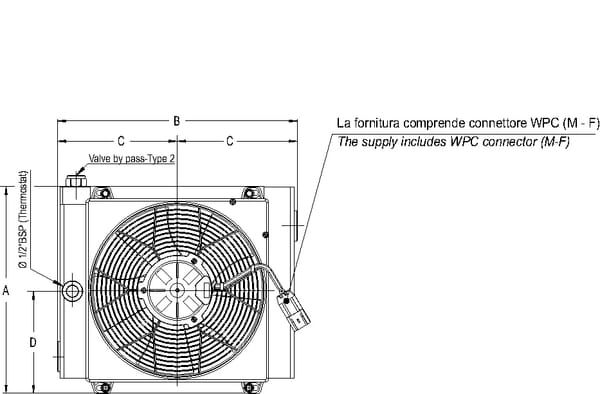

| AHeight | 409 mm |
|---|---|
| Amperage | 10 A |
| BWidth | 465 mm |
| Bypass | Yes |
| Connection thread diameter | 1 Inch |
| Cooling medium flow type | Suction |
| Drive motor power | 260 W |

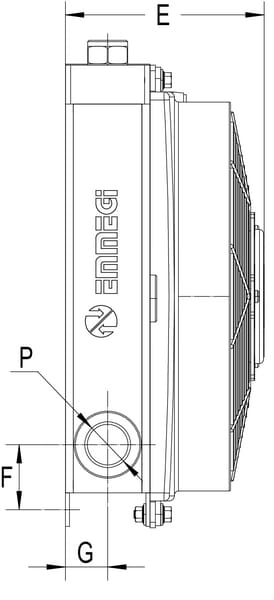

| EDepth | 188 mm |
| Fan outside diameter | 305 mm |
| Includes | Aluminium radiator, Electric motor with impeller, Temperature switch 48-60ºC, Bypass, Plug connection, Without mounting base |
| Insulation class | 68 |

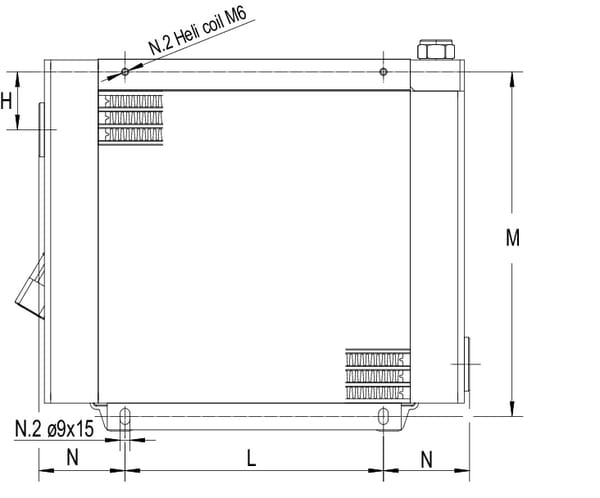

| LMounting holes distance | 310 mm |
| Long description | Oil coolers are used to improve heat exchange between oil and environment. The 2MV coolers are fitted with a thermostat as well as a bypass as standard. |
| Material | Plastic, Aluminium |
| Max. working flow | 130 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 77 dB(A) |
| Nominal voltage | 24 V |
| Product details | Outstanding value for money, With thermostat and bypass, Highly suitable for mobile applications. |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 48 - 60 °C thermostat. |
| Thermostat working temperature | 48-60 |
| Unit | Each |
| Weight | 10.5 kg |
Compatible accessories
Parts and components that work with this product.
4RA965400071
Hella Relay 4RA965400071
£11.71 excl.
£14.05 incl.
OK90519630
Emmegi Assembly foot MV3 OK90519630
£44.01 excl.
£52.81 incl.
OK9NTCTEMPS
Emmegi NTC temperature sensor 1/2" BSP OK9NTCTEMPS
£43.68 excl.
£52.42 incl.
OK9SSSCRF
Emmegi Soft start en speed control with reverse (max 25A) OK9SSSCRF
£300.84 excl.
£361.01 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 14000 g |
| Dimensions | 500 × 500 × 270 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327376
Emmegi Oil-Cooler 2050K Gr.2 OK2050K56201
£1,156.42 excl.
£1,387.70 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327411
Emmegi Fan with motor 2024-12VDC 280mm OK9202431NB
£138.28 excl.
£165.94 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000327372
Emmegi Oil-cooler by-pass 12V 48-60˚C OK2040KBV12301
£1,258.09 excl.
£1,509.71 incl.
In stock
Expected to ship on Monday 21 September
BPA000327394
Emmegi Assembly foot MV5 OK90519650
£47.71 excl.
£57.25 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327479
Emmegi Oil cooler MG- 80- 150-4 OKMG800150
£512.85 excl.
£615.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327430

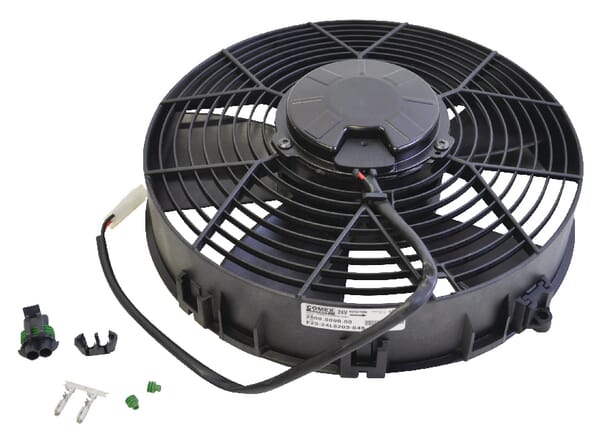

Emmegi Cooling fan 2050-24VDC motor/WA 280mm OK92050352
