£1,258.09
excl. VAT
£1,509.71 incl. VAT
£1,509.71
incl. VAT
£1,258.09 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

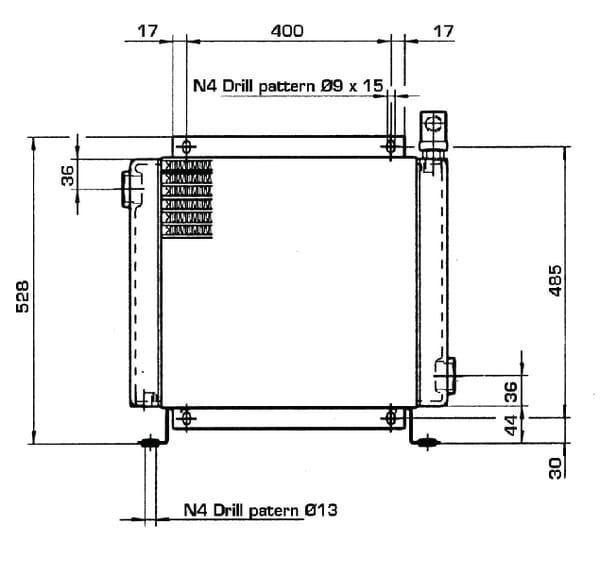

Product details

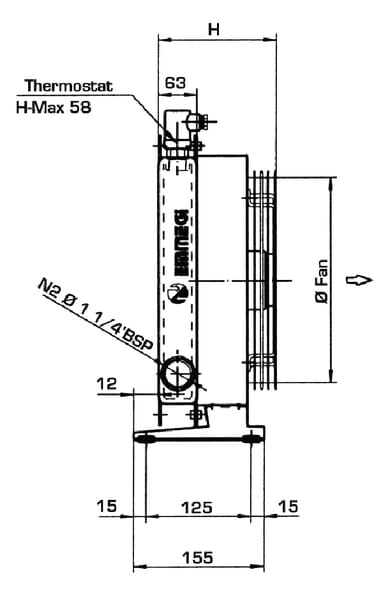

| Connection thread diameter | 1-1/4 Inch |
|---|---|
| Cooling medium flow type | Suction |

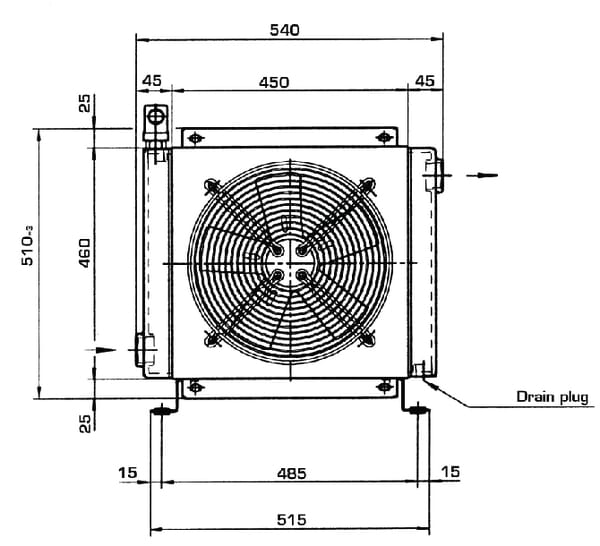

| Depth | 238 mm |
| Fan outside diameter | 385 mm |
| Includes | Aluminium radiator, Support, Impeller / electric motor, voltage depends on version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 68 |

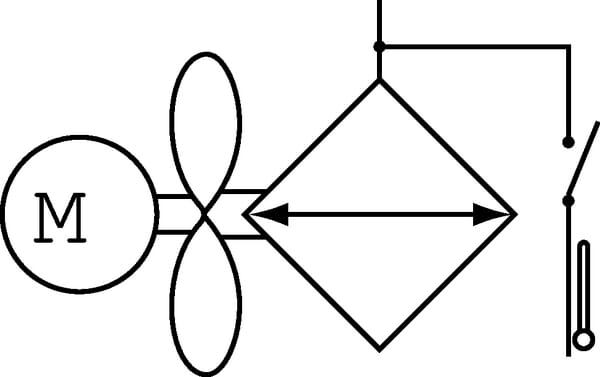

| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system. |
| Material | Plastic, Aluminium, Steel |
| Max. working flow | 140 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 76 dB(A) |
| Nominal voltage | 12 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Pros | Compact flush mounting, Complete unit, Increased efficiency, Long component service life |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 20 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 30000 g |
| Dimensions | 600 × 560 × 260 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327375
Emmegi Oil-cooler (24V) 38-50'C 2050K-24-2-01 OK2050K24201
£1,342.19 excl.
£1,610.63 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000327401
Emmegi Electric fan 12VDC 225mm OK9201535N
£176.41 excl.
£211.69 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000327361

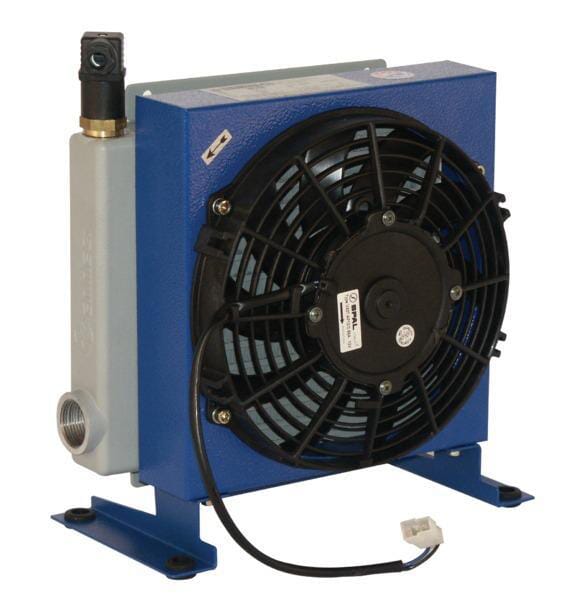

Emmegi Oil-cooler by-pass 12V 48-60˚C OK2024KBV12301
£502.53 excl.
£603.04 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000327454

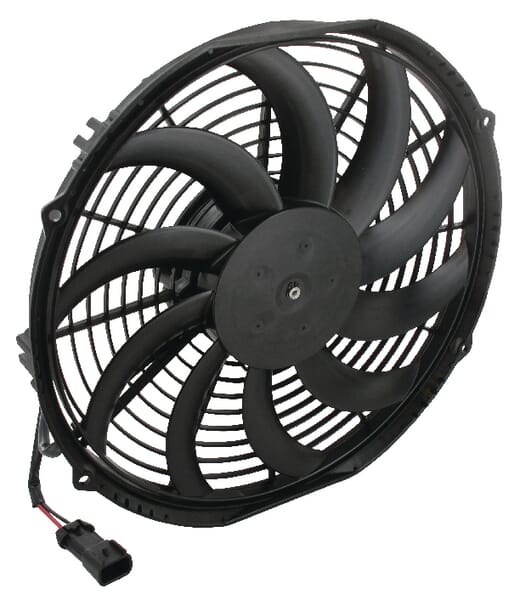

Emmegi Cooling fan HPA12-24VDC OK9HPA1235
