£556.22
excl. VAT
£667.46 incl. VAT
£667.46
incl. VAT
£556.22 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

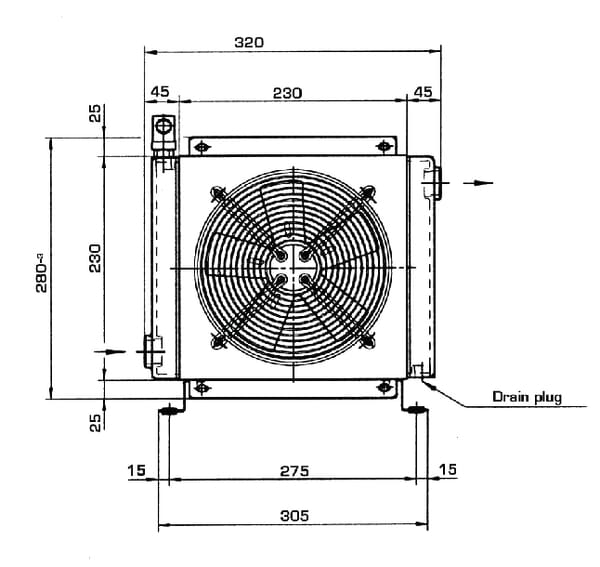

Product details
| Connection thread diameter | 1 Inch |
|---|---|
| Cooling medium flow type | Suction |
| Depth | 175 mm |
| Fan outside diameter | 225 mm |
| Includes | Aluminium radiator, Support, Impeller/electric motor, voltage according to version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 68 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of components in the system. |
| Material | Plastic, Aluminium, Steel |
| Max. working flow | 90 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 67 dB(A) |
| Nominal voltage | 12 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Pros | Compact flush mounting, Complete unit, Increased efficiency, Long component service life |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 40 - 48 °C thermostat. |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 7 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9160 g |
| Dimensions | 362 × 320 × 322 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327373
Emmegi Oil-cooler by-pass 24V 48-60˚C OK2040KBV24301
£1,258.09 excl.
£1,509.71 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000327464

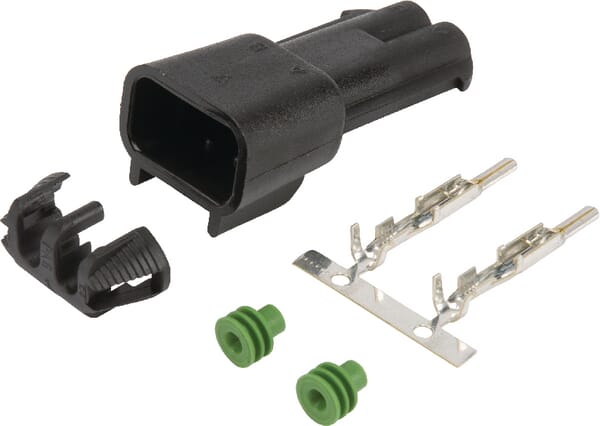

Emmegi Connector M IP67 OK9WPCM
£13.06 excl.
£15.67 incl.
In stock
Expected to ship on Monday 21 September
BPA000327445

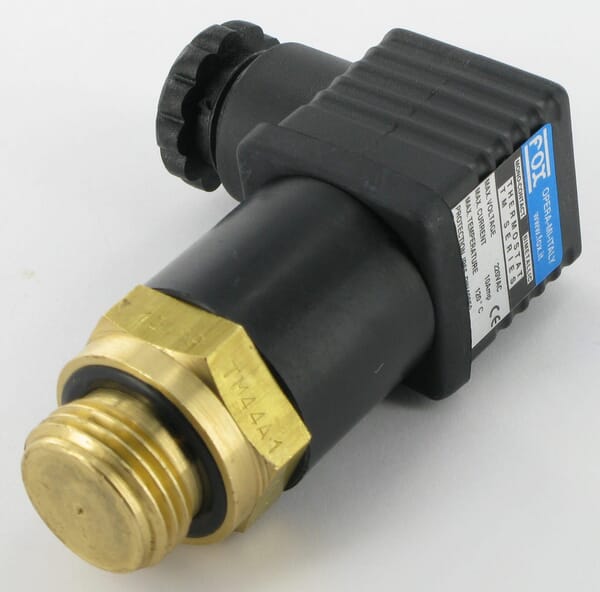

Emmegi Temperature Switch 28-40°C Oil-cooler OK93038
£75.05 excl.
£90.06 incl.
In stock
Expected to ship on Monday 21 September
BPA000327393

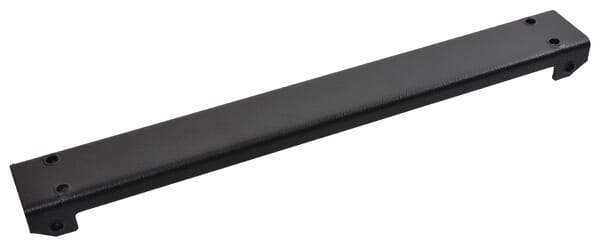

Emmegi Assembly foot MV4 OK90519640
£46.23 excl.
£55.48 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000327467
Emmegi Oil-cooler (400V) 50-38'C HPA-18-03-2-01 OKHPA1803201
£1,723.93 excl.
£2,068.72 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327408

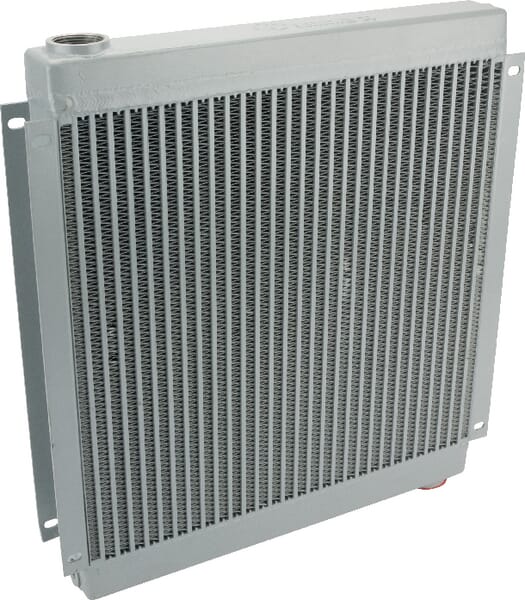

Emmegi Cooler by-pass 2020 OK92020150BV
