£1,258.09
excl. VAT
£1,509.71 incl. VAT
£1,509.71
incl. VAT
£1,258.09 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connection thread diameter | 1-1/4 Inch |
|---|---|
| Cooling medium flow type | Suction |
| Depth | 238 mm |
| Fan outside diameter | 385 mm |
| Includes | Aluminium radiator, Support, Impeller / electric motor, voltage depends on version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 68 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system. |
| Material | Plastic, Aluminium, Steel |
| Max. working flow | 140 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 79 dB(A) |
| Nominal voltage | 24 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Pros | Compact flush mounting, Complete unit, Increased efficiency, Long component service life |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 20 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 22000 g |
| Dimensions | 600 × 570 × 250 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327457
Emmegi Motor/Cooling fan/GrateT HP18/24 24VDC OK9HPA182435
£351.10 excl.
£421.32 incl.
In stock
Expected to ship on Monday 21 September
BPA000327445
Emmegi Temperature Switch 28-40°C Oil-cooler OK93038
£75.05 excl.
£90.06 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000327360
Emmegi Oil-Cooler 2024K Gr.2 OK2024K56201
£775.66 excl.
£930.79 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327455

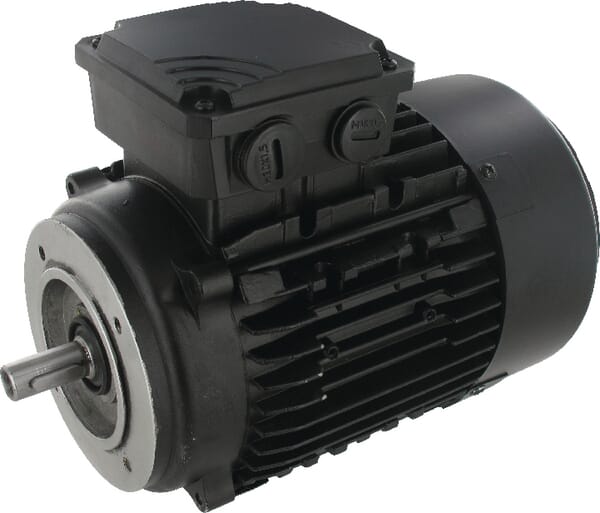

Emmegi HP-12 motor B14 380-VAC 0.25KW OK9HPA1240
£371.02 excl.
£445.22 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000327460

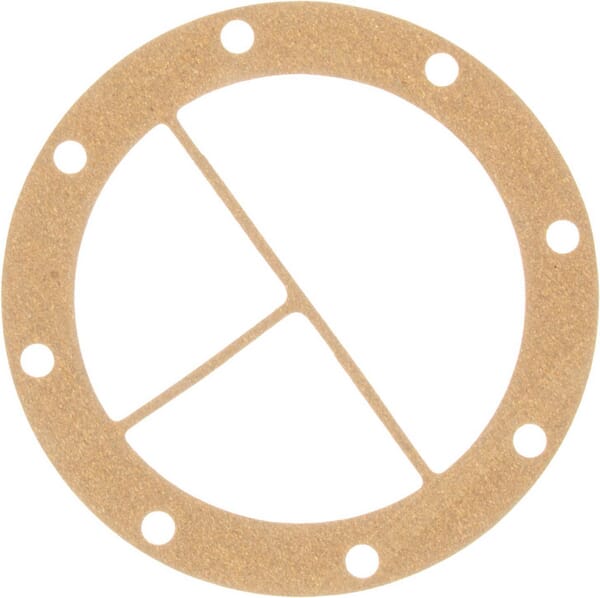

Emmegi Seal Lid TBV MG-130 OK9MG13004
