£1,416.45
excl. VAT
£1,699.74 incl. VAT
£1,699.74
incl. VAT
£1,416.45 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Connection thread diameter | 1-1/4 Inch |
|---|---|
| Cooling medium flow type | Suction |
| Depth | 208 mm |
| Fan outside diameter | 280 mm |
| Includes | Aluminium radiator, Support, Impeller/electric motor, voltage according to version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 68 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of the components in the system. |
| Material | Plastic, Aluminium, Steel |
| Max. working flow | 180 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 76 dB(A) |
| Nominal voltage | 12 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay, The OK2050 is equipped with two fans in the 12VDC and 24VDC versions |
| Pros | Compact flush mounting, Complete unit, Increased efficiency, Long component service life |
| Technical info | Oil coolers are used to improve the heat exchange between the oil and the environment. The coolers are fitted as standard with a thermostat 40-48ºC. |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 24 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 24000 g |
| Dimensions | 620 × 260 × 570 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327428

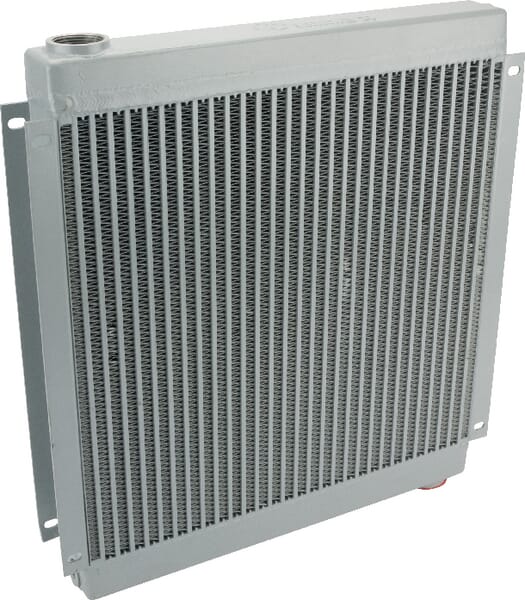

Emmegi Cooler by-pass 2050 OK92050150BV
£1,409.39 excl.
£1,691.27 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327382

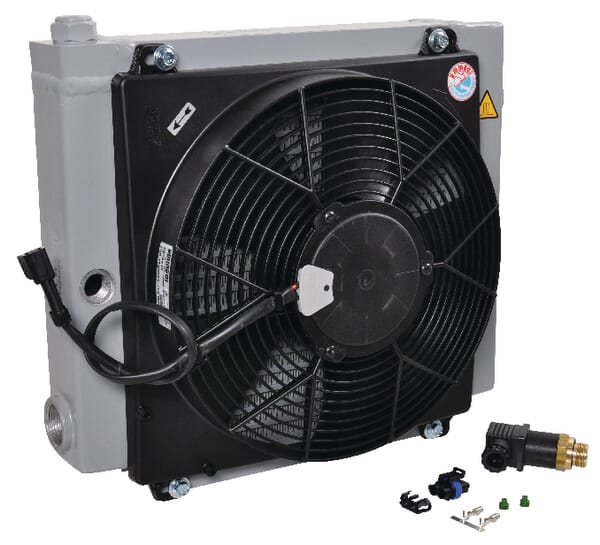

Emmegi Oil-cooler (12V) 48–60°C MV-2 OK2MV212301
£634.44 excl.
£761.33 incl.
In stock
Expected to ship on Friday 18 September
BPA000327420
Emmegi Cooling fan 2030 AC OK9203085
£48.13 excl.
£57.76 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000327471

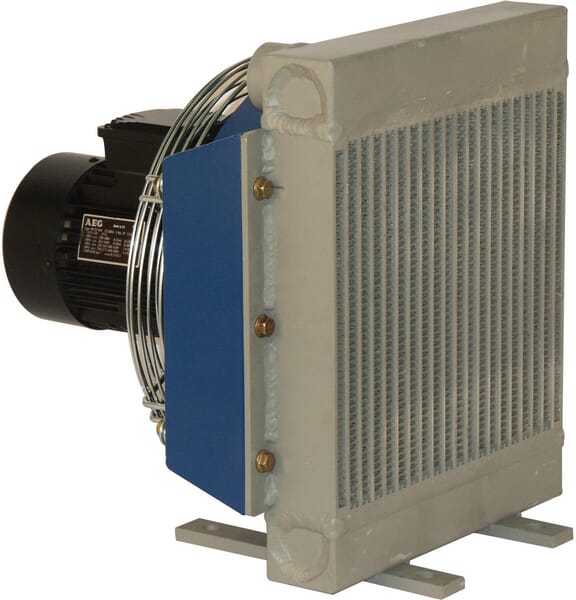

Emmegi Oil-cooler (400V) 50-38'C HPA-30-03-2-01 OKHPA3003201
£2,086.02 excl.
£2,503.22 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000327354

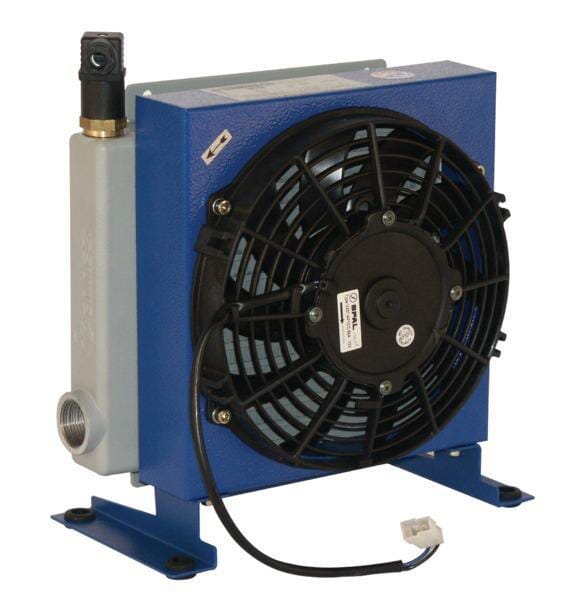

Emmegi Oil-cooler (24V) 38-50'C 2020K-24-2-01 OK2020K24201
£415.03 excl.
£498.04 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000327418

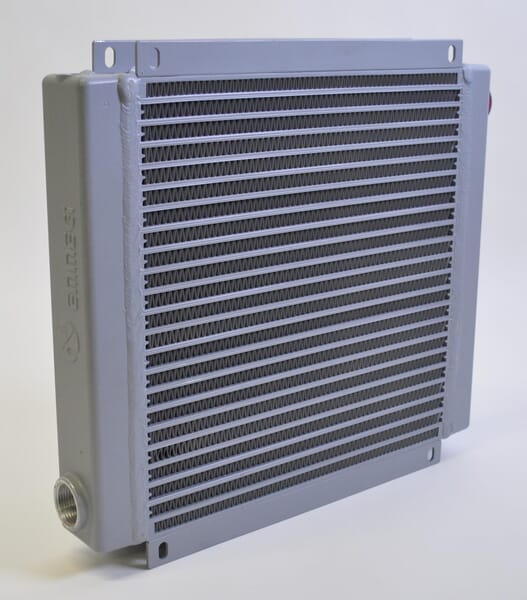

Emmegi Radiator 2030 K OK92030150
