Product details
| Amperage | 1.8 A |
|---|---|
| Connection thread diameter | 1-1/4 Inch |
| Cooling medium flow type | Suction |
| Depth | 452 mm |
| Drive motor power | 750 W |
| Fan outside diameter | 450 mm |
| Insulation class | 55 |
| Max. ambient temperature | 120 °C |
| Max. motor/engine speed | 1450 r/min |
| Max. working flow | 160 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 82 dB(A) |
| Nominal voltage | 220 V, 380 V |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 40 - 48 °C thermostat. |
| Thermostat working temperature | 30-58 |
| Unit | Each |
| Weight | 37 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 25000 g |
| Dimensions | 589 × 550 × 470 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327389
Emmegi Oil-cooler (24V) 48–60°C MV-5 OK2MV524301
£1,732.30 excl.
£2,078.76 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327385
Emmegi Oil-cooler (24V) 48–60°C MV-3 OK2MV324301
£977.35 excl.
£1,172.82 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000327436

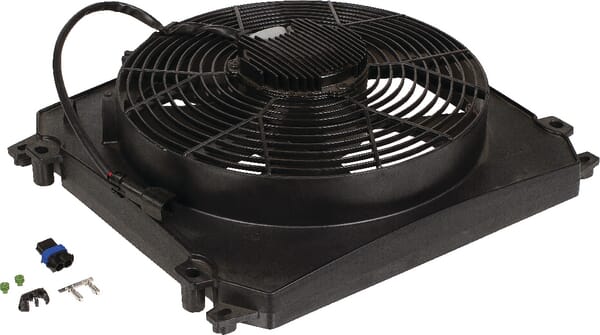

Emmegi Fan, with suction 12-V 2MV-3 OK92MV312S
