£1,228.67
excl. VAT
£1,474.40 incl. VAT
£1,474.40
incl. VAT
£1,228.67 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connection thread diameter | 1-1/4 Inch |
|---|---|
| Cooling medium flow type | Suction |
| Depth | 208 mm |
| Fan outside diameter | 280 mm |
| Includes | Aluminium radiator, Support, Impeller/electric motor, voltage according to version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 68 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of the components in the system. |
| Material | Plastic, Aluminium, Steel |
| Max. working flow | 180 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 79 dB(A) |
| Nominal voltage | 24 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay, The OK2050 is equipped with two fans in the 12VDC and 24VDC versions |
| Pros | Compact flush mounting, Complete unit, Increased efficiency, Long component service life |
| Technical info | Oil coolers are used to improve the heat exchange between the oil and the environment. The coolers are fitted as standard with a thermostat 40-48ºC. |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 24 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 30000 g |
| Dimensions | 240 × 610 × 665 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327431

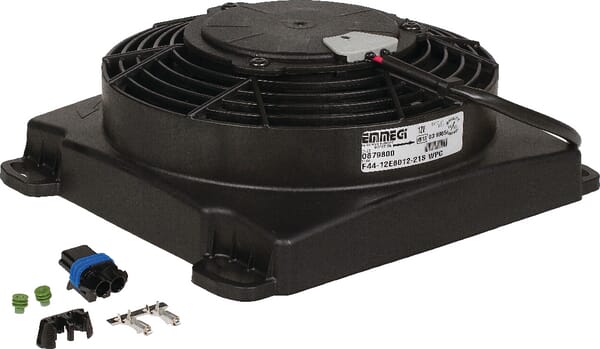

Emmegi Fan, with suction 12-V 2MV-1 OK92MV112S
£145.95 excl.
£175.14 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327376

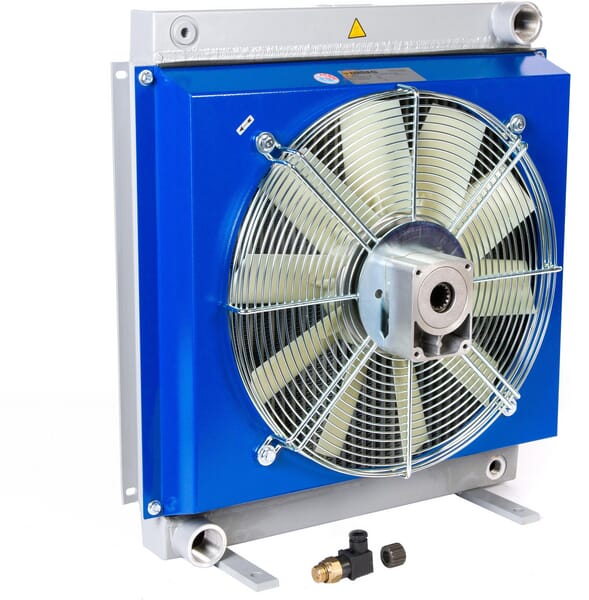

Emmegi Oil-Cooler 2050K Gr.2 OK2050K56201
£1,156.42 excl.
£1,387.70 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327484

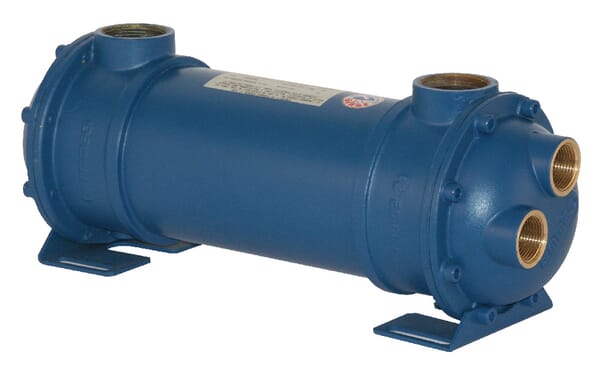

Emmegi Oil cooler MG- 80-1155-4 OKMG801155
