£39.43
excl. VAT
£47.32 incl. VAT
£47.32
incl. VAT
£39.43 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Basic radial load dynamic | 15500 N |
|---|---|
| Basic radial load static | 9500 N |
| Bearing model type | Angular contact ball bearings |
| BWidth | 17.5 mm |
| Contact angle | 30 ° |
| dInside diameter | 17 mm |
| DOutside diameter | 40 mm |
| Inside diameter of outer ring | 33.94 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 14600 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 3203-BD-XL-2Z-TVH |
| Outside diameter of inner ring | 24.43 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 16600 r/min |
| Regreasable | No |
| Rows number | 2 |
| Sealing | ZZ |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.094 kg |
Logistics
| EAN | 40128024819694064327819147 |
|---|---|
| Unit of measure | EA |
| Weight | 99 g |
| Dimensions | 45 × 45 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000088757
FAG Angular contact ball bearing 17x40x17.5mm INA/FAG 3203B2RSRTVHC3
£34.49 excl.
£41.39 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000088760

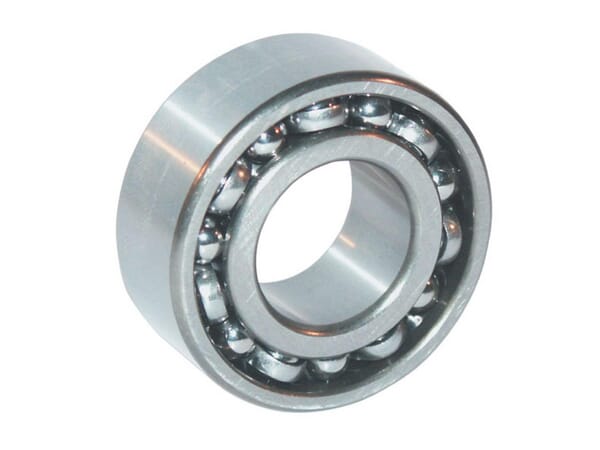

FAG Angular contact ball bearing 17x40x17.5mm INA/FAG 3203BDXLTVHC3
£35.72 excl.
£42.86 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088759
FAG Angular contact ball bearing 17x40x17.5mm INA/FAG 3203BDXL2ZTVHC3
£39.43 excl.
£47.32 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088756

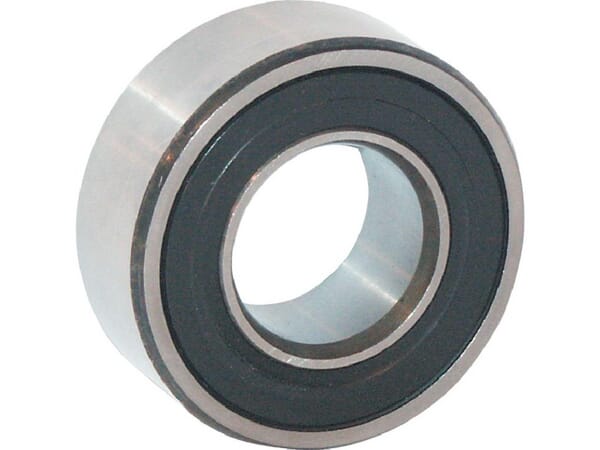

FAG Angular contact ball bearing 17x40x17.5mm INA/FAG 3203B2RSRTVH
