£30.43
excl. VAT
£36.52 incl. VAT
£36.52
incl. VAT
£30.43 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Basic radial load dynamic | 18700 N |
|---|---|
| Basic radial load static | 9000 N |
| Bearing model type | Angular contact ball bearings |
| BWidth | 14 mm |
| Contact angle | 40 ° |
| dInside diameter | 17 mm |
| DOutside diameter | 47 mm |
| Inside diameter of outer ring | 35.54 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 21600 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 7303-B-XL-TVP |
| Outside diameter of inner ring | 29.19 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 18000 r/min |
| Regreasable | Yes |
| Rows number | 1 |
| Sealing | Open |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.112 kg |
Logistics
| EAN | 40128011662564054372881824 |
|---|---|
| Unit of measure | EA |
| Weight | 117 g |
| Dimensions | 50 × 50 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000155317
FAG Deep groove ball bearing 20x47x14mm INA/FAG 6204ZZ
£5.42 excl.
£6.50 incl.
In stock
Expected to ship on Friday 18 September
BPA000081784
FAG Tapered roller bearing 65x120x24.75mm INA/FAG 30213A
£34.15 excl.
£40.98 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000151049
FAG Deep groove ball bearing 63182Z
£261.78 excl.
£314.14 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000150245
FAG Deep groove ball bearing 40x68x15mm INA/FAG 60082RSC3
£10.75 excl.
£12.90 incl.
In stock
Expected to ship on Friday 18 September
BPA000131549
FAG Thrust ball bearing 51111
£37.00 excl.
£44.40 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000150915
FAG Deep groove ball bearing C3 100x150x24 INA/FAG 6020C3FAG
£111.56 excl.
£133.87 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000202464
Kramp Hexagon nut DIN934 M36x2.00 steel zinc-plated Class 10 93436210
£26.04 excl.
£31.25 incl.
In stock
Expected to ship on Friday 18 September
BPA000389649

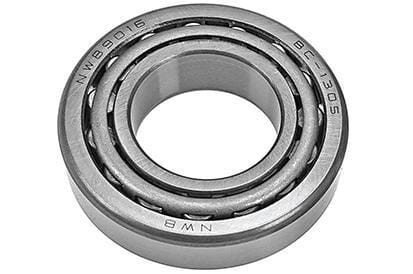

Vapormatic Tapered roller bearing 31.75x62x19.75mm VPJ2405
