£74.74
excl. VAT
£89.69 incl. VAT
£89.69
incl. VAT
£74.74 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Basic radial load dynamic | 30000 N |
|---|---|
| Basic radial load static | 15800 N |

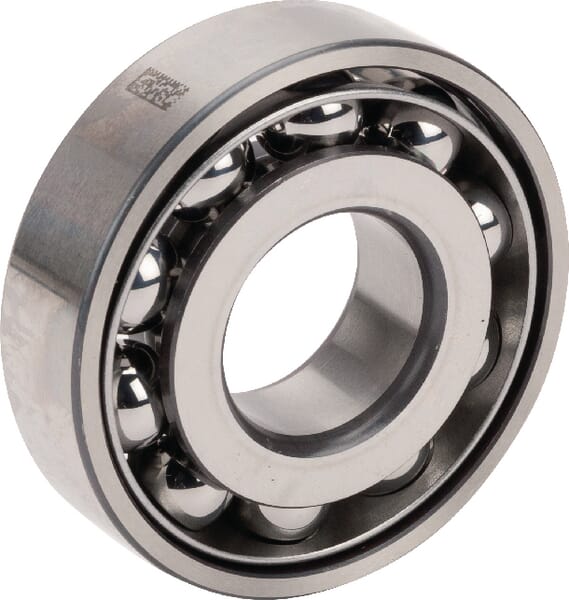

| Bearing model type | Angular contact ball bearings |
| BWidth | 17 mm |
| Contact angle | 40 ° |
| dInside diameter | 25 mm |
| DOutside diameter | 62 mm |
| Inside diameter of outer ring | 48 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 15800 r/min |
| Max working temperature | 150 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 7305-B-XL-JP-UO |
| Outside diameter of inner ring | 39.9 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 9800 r/min |
| Regreasable | Yes |
| Rows number | 1 |
| Sealing | Open |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.23 kg |
Logistics
| EAN | 4026677734556 |
|---|---|
| Unit of measure | EA |
| Weight | 241 g |
| Dimensions | 70 × 70 × 20 mm |
| Dangerous goods | No |
