£110.63
excl. VAT
£132.76 incl. VAT
£132.76
incl. VAT
£110.63 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Basic radial load dynamic | 43000 N |
|---|---|
| Basic radial load static | 29500 N |
| Bearing model type | Angular contact ball bearings |
| BWidth | 30.2 mm |
| Contact angle | 30 ° |
| dInside diameter | 30 mm |
| DOutside diameter | 72 mm |
| Inside diameter of outer ring | 60.47 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 7800 r/min |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 3306-BD-XL-2HRS-TVH |
| Outside diameter of inner ring | 44.35 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 5600 r/min |
| Regreasable | No |
| Rows number | 2 |
| Sealing | 2RS |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.055 kg |
Logistics
| EAN | 4012802478020 |
|---|---|
| Unit of measure | EA |
| Weight | 556 g |
| Dimensions | 76 × 75 × 37 mm |
| Dangerous goods | No |
You might also like
BPA000089791
FAG Angular contact ball bearing 30x72x30.2mm INA/FAG 3306BDXL2HRSTVHC3
£80.46 excl.
£96.55 incl.
In stock
Expected to ship on Friday 18 September
BPA000089793
FAG Angular contact ball bearing 30x72x30.2mm INA/FAG 3306C3
£76.42 excl.
£91.70 incl.
In stock
Expected to ship on Friday 18 September
BPA000089792
FAG Angular contact ball bearing 30x72x30.2mm INA/FAG 3306BTVH
£59.53 excl.
£71.44 incl.
In stock
Expected to ship on Friday 18 September
BPA000155323
FAG Deep groove ball bearing 25x52x15mm INA/FAG 62052RSC3
£5.30 excl.
£6.36 incl.
In stock
Expected to ship on Friday 18 September
BPA000052231

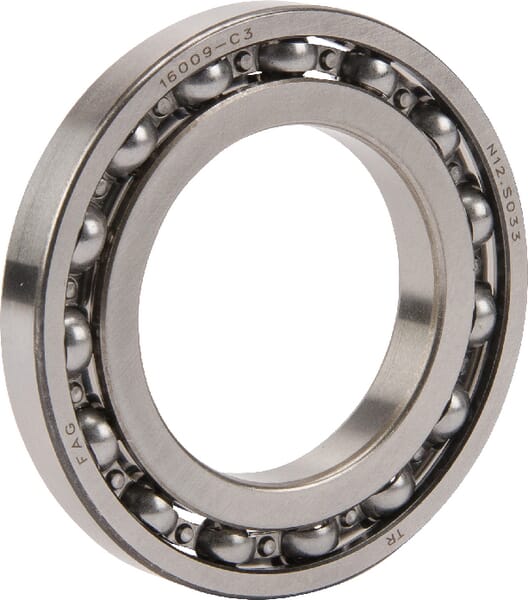

FAG Deep groove ball bearing 45x75x10mm INA/FAG 16009AC3
£17.96 excl.
£21.55 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000277883

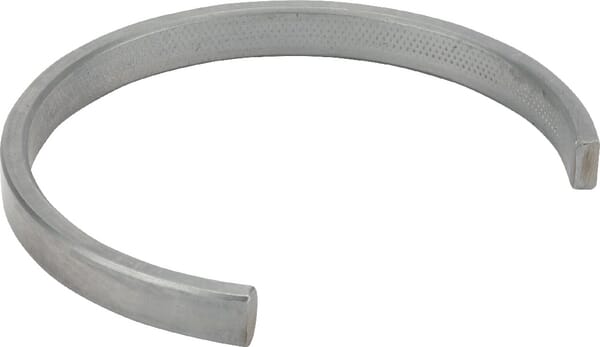

FAG Locating ring FRM(FRB) FRM909
