£13.90
excl. VAT
£16.68 incl. VAT
£16.68
incl. VAT
£13.90 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 14.3 mm |
| Ball centre to grease hole distance | 4.2 mm |
| Ball centre to inner ring end distance | 19.8 mm |
| Basic radial load dynamic | 14900 N |
| Basic radial load static | 7800 N |
| Inner ring width | 34.1 mm |
| Inside diameter | 25.4 mm |
| Locking screw centre to end distance | 5 mm |

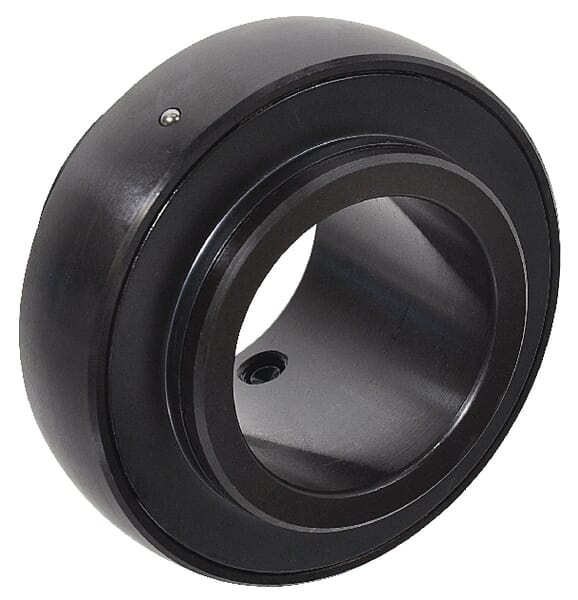

| Long description | Ball bearing inserts Koyo, series UC 200 imperial |
| Manufacturer | Schaeffler |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Outer ring width | 17 mm |
| Outside diameter | 52 mm |
| Outside diameter of inner ring | 33.8 mm |
| Properties | Both sides: extended inner ring with 2 adjusting screws, Convex outer ring with lubricating holes, Sealed on both sides |
| Sealing width | 17.6 mm |
| Thread diameter | 1/8 Inch |
| Thread type | Inch |
| Unit | Each |
Logistics
| EAN | 4012802627725 |
|---|---|
| Unit of measure | EA |
| Weight | 200 g |
| Dimensions | 60 × 60 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000072464
FAG Spherical roller bearing 25x52x18mm INA/FAG 22205E1XLKC3
£97.13 excl.
£116.56 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380615
FAG Housing unit UCF202J7
£21.79 excl.
£26.15 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000380748

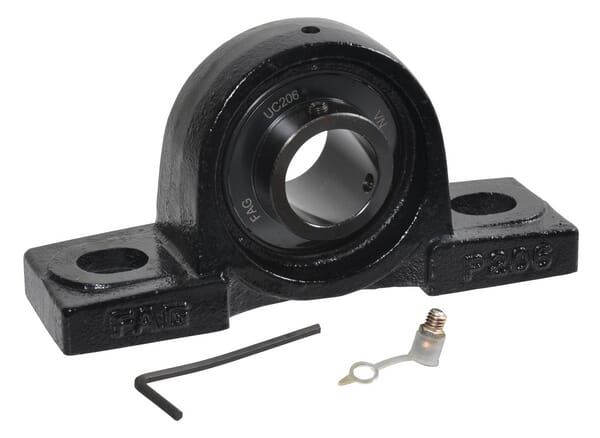

FAG Housing unit UCP UCP206
