£13.44
excl. VAT
£16.13 incl. VAT
£16.13
incl. VAT
£13.44 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

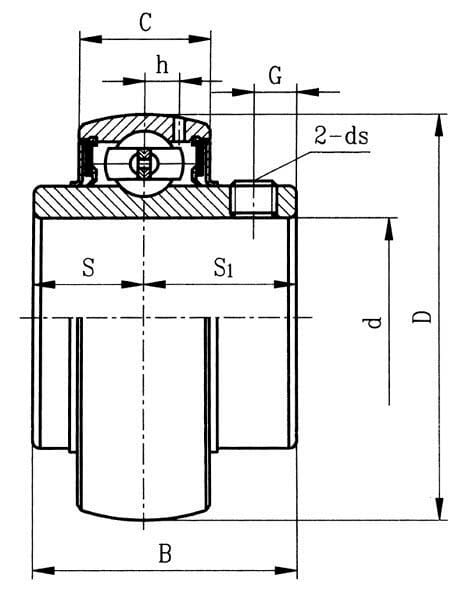

| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 12.7 mm |
| Ball centre to grease hole distance | 4.2 mm |
| Basic radial load dynamic | 13600 N |
| Basic radial load static | 6600 N |
| BInner ring width | 31 mm |
| COuter ring width | 16.8 mm |
| dInside diameter | 12 mm |
| DOutside diameter | 47 mm |
| Locking screw centre to end distance | 5 mm |
| Manufacturer | Schaeffler |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | UC201 |
| Outside diameter of inner ring | 27.6 mm |
| Properties | Both sides: extended inner ring with 2 adjusting screws, RSR seal |
| Sealing width | 16.8 mm |
| Unit | Each |
| Weight | 0.193 kg |
| Wrench/spanner size | 3.0 mm |
Logistics
| EAN | 4047643051811 |
|---|---|
| Unit of measure | EA |
| Weight | 202 g |
| Dimensions | 50 × 50 × 35 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000086021
FAG Angular contact ball bearing 60x110x36.5mm INA/FAG 3212BDXL2ZTVH
£154.27 excl.
£185.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000258043
FAG Double lip seal EDH617
£29.28 excl.
£35.14 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000380663

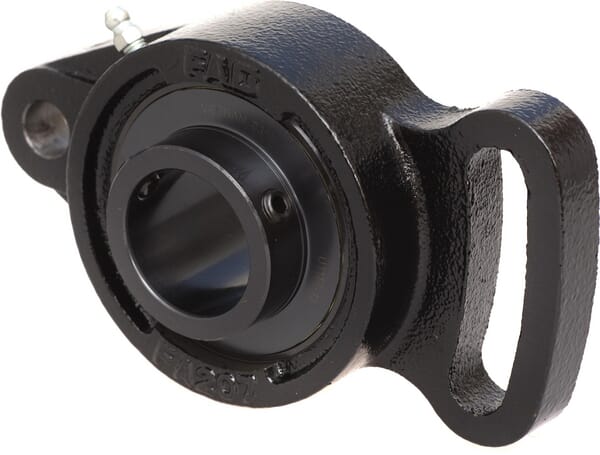

FAG Housing unit UCFA204J7
£26.01 excl.
£31.21 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000151059
FAG Deep groove ball bearing 63192Z
£320.26 excl.
£384.31 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000153362
FAG Deep groove ball bearing 25x47x16mm INA/FAG 630052RS
£16.47 excl.
£19.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000353272

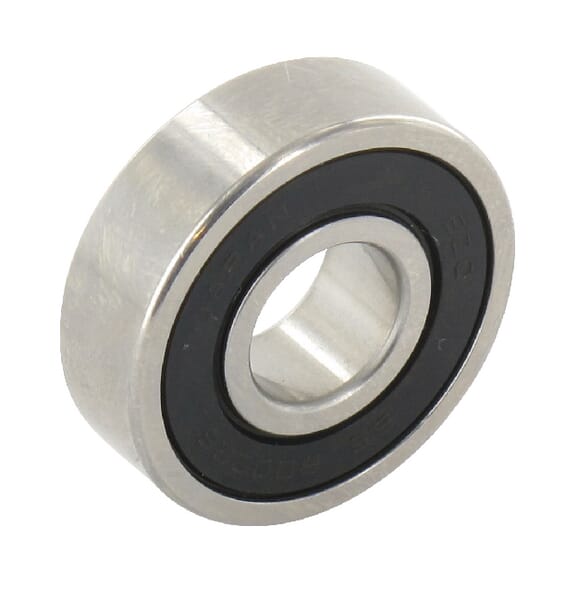

FAG Deep groove ball bearing 10x26x8mm INA/FAG S60002RS
