£354.43
excl. VAT
£425.32 incl. VAT
£425.32
incl. VAT
£354.43 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Harvesters, Soil cultivating machinery, Wood shredders |
|---|---|
| Attachment machine side | n/a |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual, Delivered without yokes |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Details | Dispense duration: 100–250 hours, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |

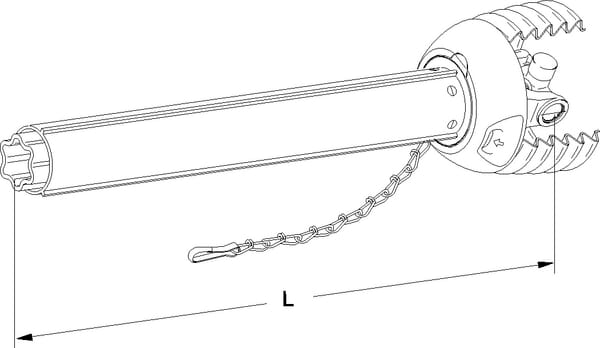

| Length | 1101 mm |
| Locking type by machine side | Cross |
| Long description | PTO drive shafts complete Power Drive series P 500 |
| Original number equivalent | 1113272 |
| Outer tube profile | S5 |
| Properties | Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG20 |
| Size code | P500 |
| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 5° and service life 1000 hours, LZ = closed length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11300 g |
| Dimensions | 1400 × 190 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000178238

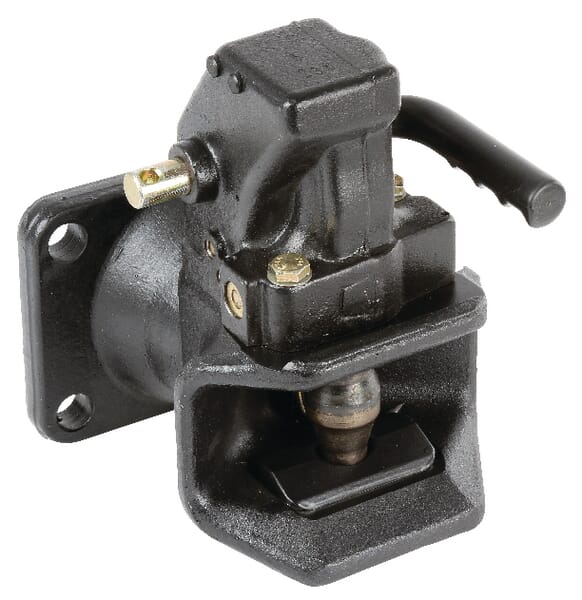

Walterscheid Trailer coupling Cramer 8003291
£1,385.43 excl.
£1,662.52 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000144241

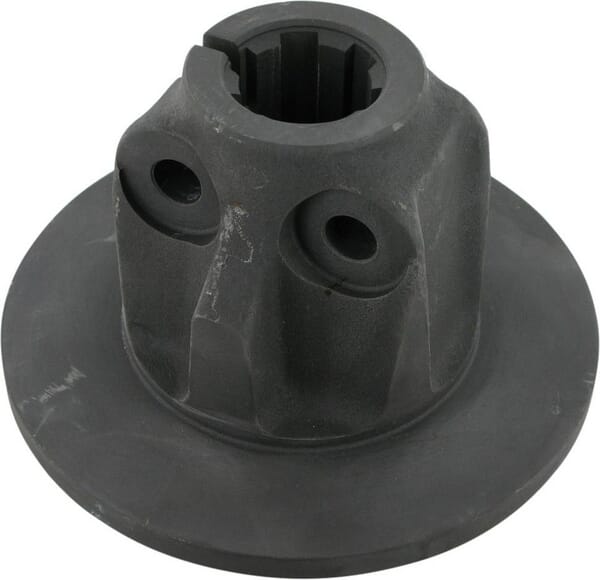

Walterscheid Flange hub K90/4 1.3/8 569100
£368.72 excl.
£442.46 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000076132
Walterscheid Yoke for clutch F5/2R, W2600/P600 263126
£656.89 excl.
£788.27 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000084360
Walterscheid Fork head 25.7x63mm 306372
£129.38 excl.
£155.26 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000064128

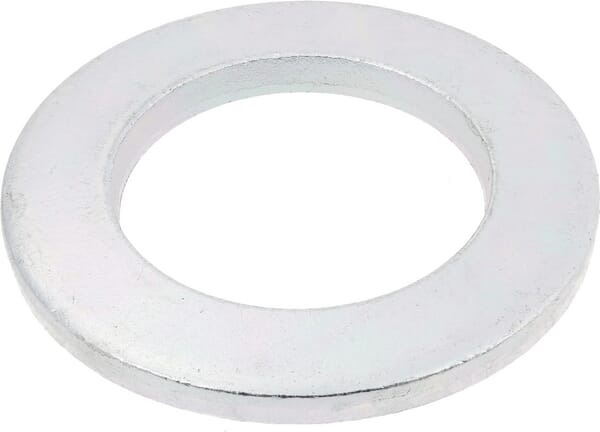

Walterscheid Distance ring for HGST 200647
