£13.36
excl. VAT
£16.03 incl. VAT
£16.03
incl. VAT
£13.36 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|

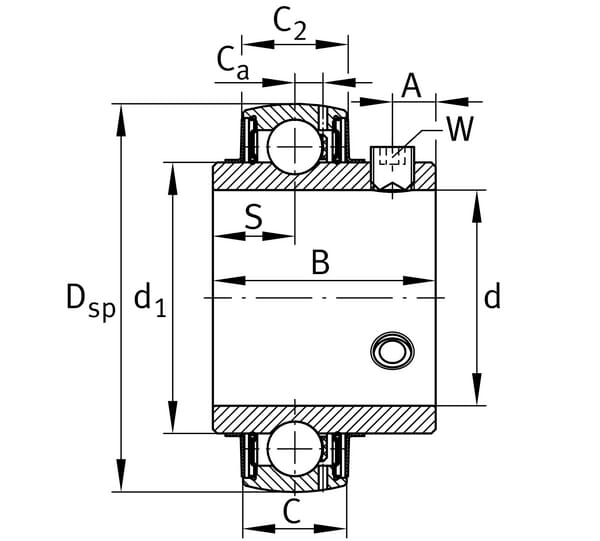

| Ball centre to end distance | 12.7 mm |
| Ball centre to grease hole distance | 4.2 mm |
| Basic radial load dynamic | 13600 N |
| Basic radial load static | 6600 N |
| Inner ring width | 31 mm |
| Inside diameter | 15 mm |
| Locking screw centre to end distance | 5 mm |
| Manufacturer | Schaeffler |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | UC202 |
| Outer ring width | 16.8 mm |
| Outside diameter | 47 mm |
| Outside diameter of inner ring | 27.6 mm |
| Properties | Both sides: extended inner ring with 2 adjusting screws, RSR seal |
| Sealing width | 16.8 mm |
| Unit | Each |
| Weight | 0.188 kg |
| Wrench/spanner size | 3.0 mm |
Logistics
| EAN | 4047643052085 |
|---|---|
| Unit of measure | EA |
| Weight | 192 g |
| Dimensions | 52 × 52 × 38 mm |
| Dangerous goods | No |
You might also like
BPA000153557
FAG Deep groove ball bearing 20x52x15mm INA/FAG 6304ZC3
£8.51 excl.
£10.21 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000131530
FAG Thrust ball bearing 51108
£16.74 excl.
£20.09 incl.
In stock
Expected to ship on Monday 21 September
BPA000150297

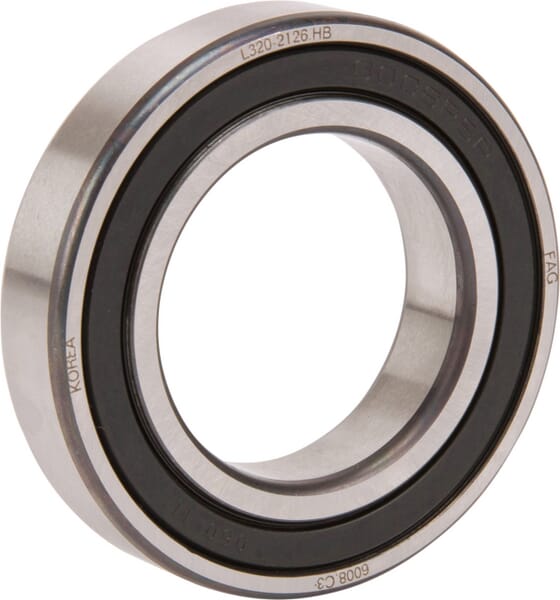

FAG Deep groove ball bearing 40x68x15mm INA/FAG 6008RSRC3
