£103.50
excl. VAT
£124.20 incl. VAT
£124.20
incl. VAT
£103.50 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 78800 N |
| Basic radial load static | 77500 N |

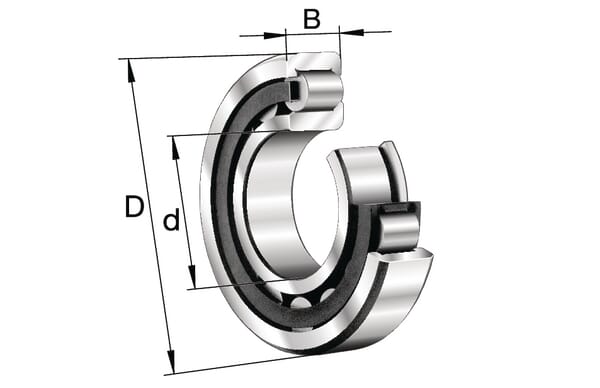

| Bearing model type | Cylindrical roller bearings |
| Benefits | Correct operating play at high temperature or press fit |
| BWidth | 25 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| Details | Radial bearing clearance (C3) |
| dInside diameter | 45 mm |
| DOutside diameter | 100 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 8500 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ309-E-TVP2-C3 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | C3 |
| Ref rotation speed | 6200 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
Logistics
| EAN | 4012801177054 |
|---|---|
| Unit of measure | EA |
| Weight | 1000 g |
| Dimensions | 100 × 100 × 25 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000088721
FAG Tapered roller bearing 120x180x38mm INA/FAG 32024X
£269.37 excl.
£323.24 incl.
In stock
Expected to ship on Friday 18 September
BPA000155243
FAG Deep groove ball bearing 15x35x11mm INA/FAG 6202ZZC3
£4.21 excl.
£5.05 incl.
In stock
Expected to ship on Friday 18 September
BPA000155410

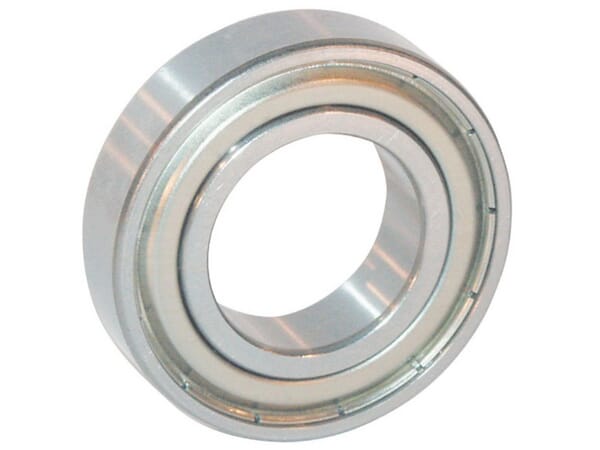

FAG Deep groove ball bearing 35x72x17mm INA/FAG 6207CZC3
£14.93 excl.
£17.92 incl.
In stock
Expected to ship on Friday 18 September
BPA000152933
FAG Deep groove ball bearing 10x35x11mm INA/FAG 6300
£4.90 excl.
£5.87 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000038287

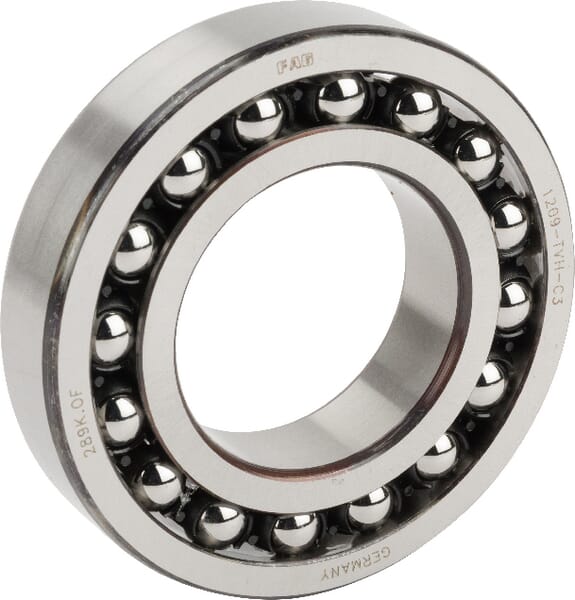

FAG Self-aligning ball bearing 45x85x19mm INA/FAG 1209TVHC3
