£37.67
excl. VAT
£45.20 incl. VAT
£45.20
incl. VAT
£37.67 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 22.2 mm |
| Ball centre to grease hole distance | 7 mm |
| Ball centre to inner ring end distance | 33.4 mm |
| Basic radial load dynamic | 46000 N |
| Basic radial load static | 29000 N |
| Inner ring width | 55.6 mm |
| Inside diameter | 50.8 mm |
| Locking screw centre to end distance | 10 mm |

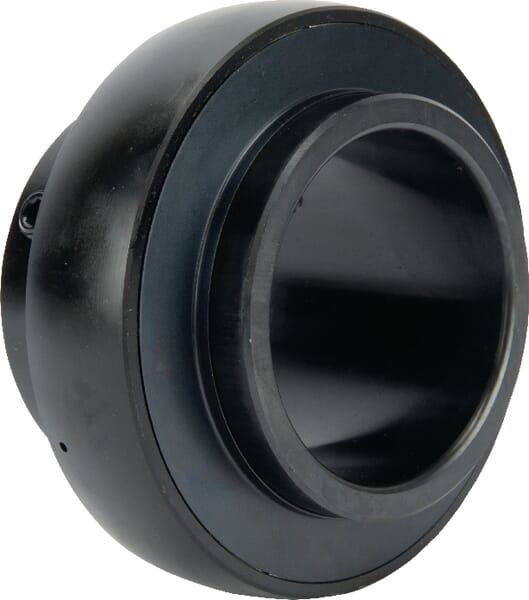

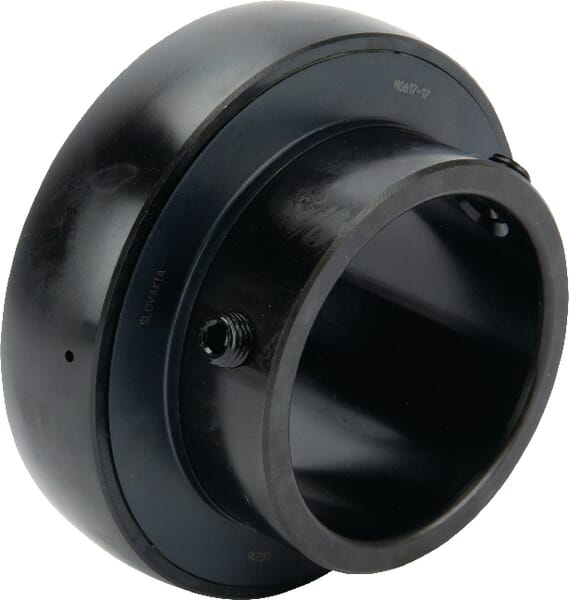

| Long description | Ball bearing inserts Koyo, series UC 200 imperial |
| Manufacturer | Schaeffler |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Outer ring width | 25 mm |
| Outside diameter | 100 mm |
| Outside diameter of inner ring | 69.8 mm |
| Properties | Both sides: extended inner ring with 2 adjusting screws, Convex outer ring with lubricating holes, Sealed on both sides |
| Sealing width | 25.6 mm |
| Thread diameter | 3/16 Inch |
| Thread type | Inch |
| Unit | Each |
Logistics
| EAN | 4012802630961 |
|---|---|
| Unit of measure | EA |
| Weight | 1247 g |
| Dimensions | 120 × 115 × 66 mm |
| Dangerous goods | No |
