£106.70
excl. VAT
£128.04 incl. VAT
£128.04
incl. VAT
£106.70 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

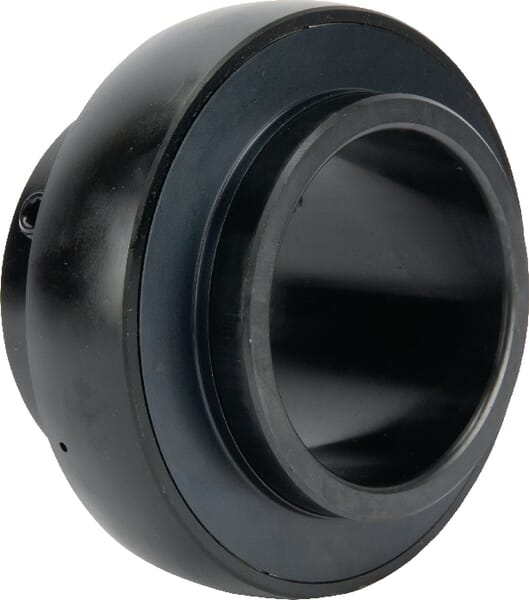

Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 33.3 mm |
| Ball centre to grease hole distance | 9.3 mm |
| Basic radial load dynamic | 76000 N |
| Basic radial load static | 54000 N |
| Inner ring width | 82.6 mm |
| Inside diameter | 80 mm |
| Locking screw centre to end distance | 14 mm |
| Manufacturer | Schaeffler |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | UC216 |
| Outer ring width | 34.4 mm |
| Outside diameter | 140 mm |
| Outside diameter of inner ring | 97 mm |
| Properties | Both sides: extended inner ring with 2 adjusting screws, RSR seal |
| Sealing width | 34.4 mm |
| Unit | Each |
| Wrench/spanner size | 6.0 mm |
Logistics
| EAN | 4047643056472 |
|---|---|
| Unit of measure | EA |
| Weight | 2706 g |
| Dimensions | 160 × 160 × 85 mm |
| Dangerous goods | No |
