£52.21
excl. VAT
£62.65 incl. VAT
£62.65
incl. VAT
£52.21 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 38500 N |
| Basic radial load static | 31000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 18 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| dInside diameter | 20 mm |
| DOutside diameter | 47 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 22000 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ2204-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | CN |
| Ref rotation speed | 16000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.161 kg |
Logistics
| EAN | 4012801176729 |
|---|---|
| Unit of measure | EA |
| Weight | 151 g |
| Dimensions | 50 × 50 × 20 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000072594
FAG Spherical roller bearing 80x140x33mm INA/FAG 22216E1AXLKMC3
£292.49 excl.
£350.99 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000044843
FAG Self-aligning ball bearing 20x52x15mm INA/FAG 1304TVH
£35.99 excl.
£43.19 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000067609
FAG Spherical roller bearing 65x140x33mm INA/FAG 21313E1C3
£225.75 excl.
£270.90 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000155640
FAG Deep groove ball bearing 95x170x32mm INA/FAG 6219C3
£151.69 excl.
£182.03 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000150768
FAG Deep groove ball bearing 65x100x18mm INA/FAG 6013C3
£38.21 excl.
£45.85 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000158372
FAG Deep groove ball bearing 9x17x5mm INA/FAG 689ZZ
£10.72 excl.
£12.86 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000203769
Kramp Hexagon head bolt DIN933 UNF 3/4"x2" steel zinc-plated 8.8 933342UNF
£5.87 excl.
£7.04 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000346423
Non Original Rotovator blade LH 220x89x40mm 8mm thick suitable for Calderoni RB139001LH
£5.37 excl.
£6.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000202478

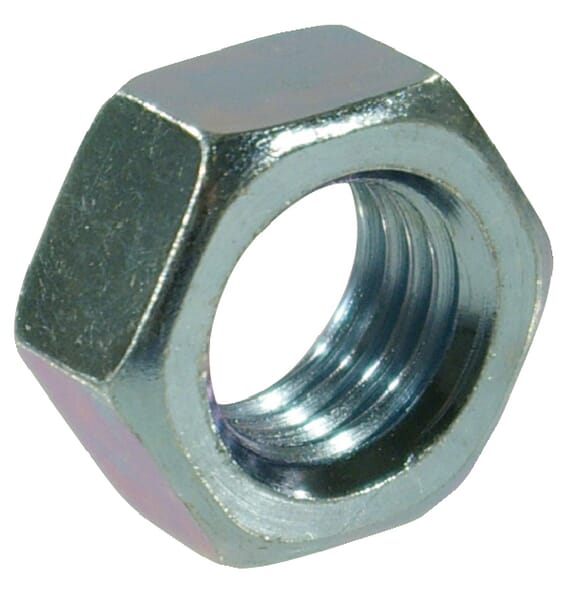

Kramp Hexagon nut DIN934 M39x4.00 steel zinc-plated Class 8 93439P001
