£42.36
excl. VAT
£50.83 incl. VAT
£50.83
incl. VAT
£42.36 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 37500 N |
| Basic radial load static | 27000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 15 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 20 mm |
| DOutside diameter | 52 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 17200 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU304-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 14000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.147 kg |
Logistics
| EAN | 4012801179690 |
|---|---|
| Unit of measure | EA |
| Weight | 149 g |
| Dimensions | 58 × 60 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000112114
FAG Deep groove ball bearing 15x35x14mm INA/FAG 4202BBTVH
£37.55 excl.
£45.06 incl.
In stock
Expected to ship on Monday 21 September
BPA000149538
FAG Deep groove ball bearing 20x42x12mm INA/FAG 6004H2RS
£20.19 excl.
£24.23 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000167177
FAG Angular contact ball bearing 70x125x24mm INA/FAG 7214BTVP
£136.22 excl.
£163.46 incl.
In stock
Expected to ship on Monday 21 September
BPA000148875
FAG Deep groove ball bearing 12x28x8mm INA/FAG 60012RS
£3.77 excl.
£4.52 incl.
In stock
Expected to ship on Monday 21 September

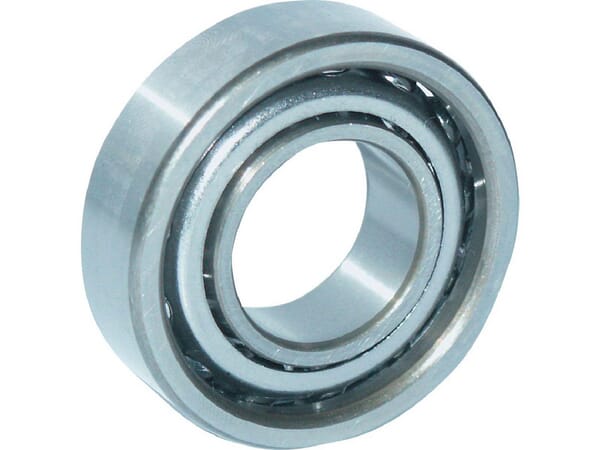

BPA000167138
