£60.44
excl. VAT
£72.53 incl. VAT
£72.53
incl. VAT
£60.44 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 41500 N |
| Basic radial load static | 34500 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 18 mm |
| Consists of | Cylindrical bearing, Inner ring NUP |
| dInside diameter | 25 mm |
| DOutside diameter | 52 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 19800 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NUP2205-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 fixed and 1 loose rib, Fixed bearing, to lock shaft axially in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 15000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.156 kg |
Logistics
| EAN | 4012801180177 |
|---|---|
| Unit of measure | EA |
| Weight | 175 g |
| Dimensions | 55 × 55 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000380537
FAG Bearing insert 25x52x17.6mm INA/FAG UC205INA
£13.11 excl.
£15.73 incl.
In stock
Expected to ship on Friday 18 September
BPA000136106

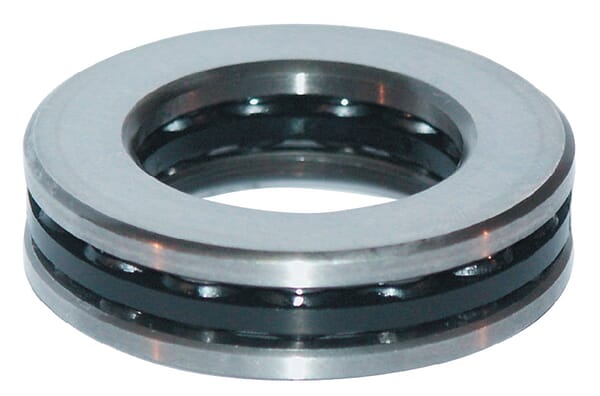

FAG Thrust ball bearing 51202
