£47.39
excl. VAT
£56.87 incl. VAT
£56.87
incl. VAT
£47.39 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 49000 N |
| Basic radial load static | 37500 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 17 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 25 mm |
| DOutside diameter | 62 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 14400 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU305-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 12000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.234 kg |
Logistics
| EAN | 4012801179706 |
|---|---|
| Unit of measure | EA |
| Weight | 244 g |
| Dimensions | 68 × 67 × 20 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000326412
FAG Cylindrical roller bearing 25x62x17mm INA/FAG NU305EXLM1
£100.64 excl.
£120.77 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000326413
FAG Cylindrical roller bearing 25x62x17mm INA/FAG NU305EXLTVP2C3
£43.43 excl.
£52.12 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000155596
FAG Deep groove ball bearing C3 75x130x25 INA/FAG 6215ZC3
£82.36 excl.
£98.83 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000072477
FAG Spherical roller bearing 30x62x20mm INA/FAG 22206E1K
£89.55 excl.
£107.46 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000155202
FAG Deep groove ball bearing 12x32x10mm INA/FAG 62012RS
£3.62 excl.
£4.34 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000380795

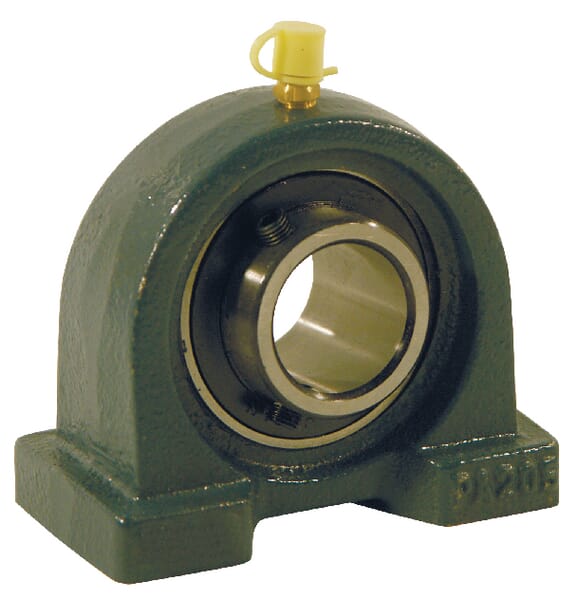

FAG Housing unit UCPA UCPA208
