£100.64
excl. VAT
£120.77 incl. VAT
£120.77
incl. VAT
£100.64 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 49000 N |
| Basic radial load static | 37500 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 17 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 25 mm |
| DOutside diameter | 62 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 21500 r/min |
| Max working temperature | 150 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU305-E-XL-M1 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 10100 r/min |
| Rows number | 1 |
| Unit | Each |
| Weight | 0.027 kg |
Logistics
| EAN | 4012801591300 |
|---|---|
| Unit of measure | EA |
| Weight | 277 g |
| Dimensions | 72 × 67 × 21 mm |
| Dangerous goods | No |
You might also like
BPA000326413
FAG Cylindrical roller bearing 25x62x17mm INA/FAG NU305EXLTVP2C3
£43.43 excl.
£52.12 incl.
In stock
Expected to ship on Monday 21 September
BPA000326411
FAG Cylindrical roller bearing 25x62x17mm INA/FAG NU305ETVP2
£47.39 excl.
£56.87 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000093265

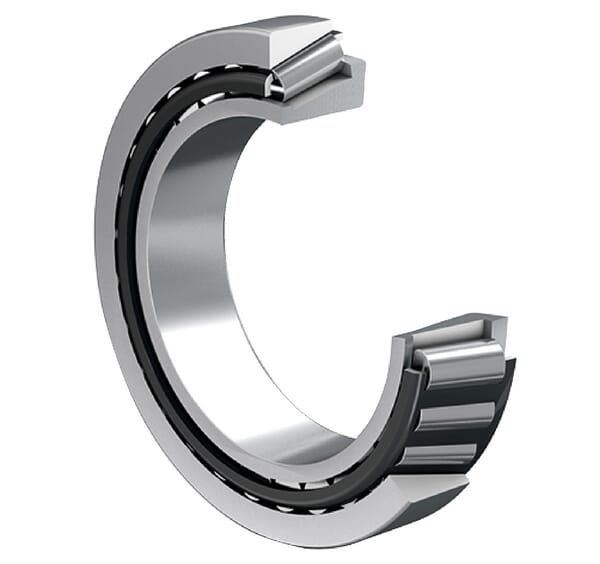

FAG Tapered roller bearing 80x140x46x35mm INA/FAG 33216A
£186.93 excl.
£224.32 incl.
In stock
Expected to ship on Friday 18 September
BPA000285050

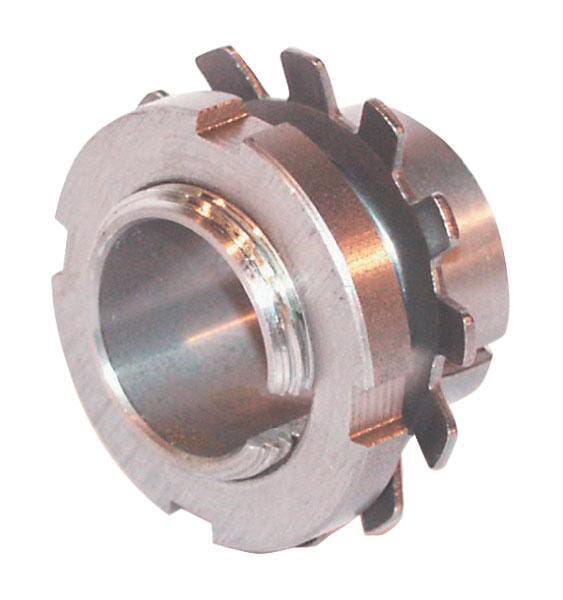

FAG Adaptor sleeve with nut 20x38x26mm H205
