£143.60
excl. VAT
£172.32 incl. VAT
£172.32
incl. VAT
£143.60 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 61000 N |
| Basic radial load static | 48000 N |
| Bearing model type | Deep groove ball bearings |
| Benefits | Correct operating play at high temperature or press fit |
| BWidth | 19 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| Details | Radial bearing clearance (C3) |
| dInside diameter | 30 mm |
| DOutside diameter | 72 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 12400 r/min |
| Max working temperature | 150 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ306-E-M1A-C3 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | C3 |
| Ref rotation speed | 8900 r/min |
| Rows number | 1 |
| Unit | Each |
| Weight | 0.415 kg |
Logistics
| EAN | 4012801176989 |
|---|---|
| Unit of measure | EA |
| Weight | 434 g |
| Dimensions | 71 × 68 × 70 mm |
| Dangerous goods | No |
You might also like
BPA000325150
FAG Cylindrical roller bearing 30x72x19mm INA/FAG NJ306EXLTVP2C3
£60.51 excl.
£72.61 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000153605
FAG Deep groove ball bearing 30x72x19mm INA/FAG 6306N
£14.48 excl.
£17.38 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000150916
FAG Deep groove ball bearing 100x150x24mm INA/FAG 6020ZZ
£114.41 excl.
£137.29 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000247479

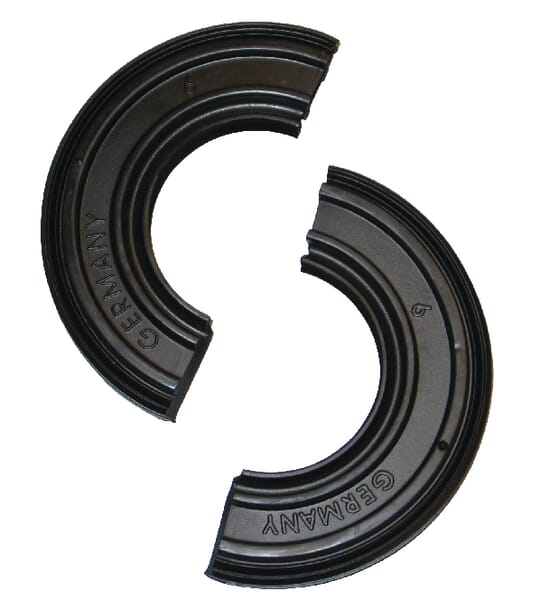

FAG Sealing rings for SNV DH522
