£60.51
excl. VAT
£72.61 incl. VAT
£72.61
incl. VAT
£60.51 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 61000 N |
| Basic radial load static | 48000 N |
| Bearing model type | Cylindrical roller bearings |
| Benefits | Correct operating play at high temperature or press fit |
| BWidth | 19 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| Details | Radial bearing clearance (C3) |
| dInside diameter | 30 mm |
| DOutside diameter | 72 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 14200 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ306-E-XL-TVP2-C3 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | C3 |
| Ref rotation speed | 8900 r/min |
| Rows number | 1 |
| Unit | Each |
| Weight | 0.384 kg |
Logistics
| EAN | 4012801021050 |
|---|---|
| Unit of measure | EA |
| Weight | 376 g |
| Dimensions | 75 × 75 × 22 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000325148
FAG Cylindrical roller bearing 30x72x19mm INA/FAG NJ306EM1AC3
£143.60 excl.
£172.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000067584
FAG Spherical roller bearing 50x110x27mm INA/FAG 21310E1XLKTVPBC3
£150.58 excl.
£180.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000150160
FAG Deep groove ball bearing 30x55x13mm INA/FAG 6006ZZ
£6.99 excl.
£8.39 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000151021
FAG Deep groove ball bearing 75x160x37 INA/FAG 6315RSR
£171.15 excl.
£205.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000323577
FAG Cylindrical roller bearing 50x90x23mm INA/FAG NUP2210ETVP2
£114.07 excl.
£136.88 incl.
In stock
Expected to ship on Monday 21 September
BPA000285284

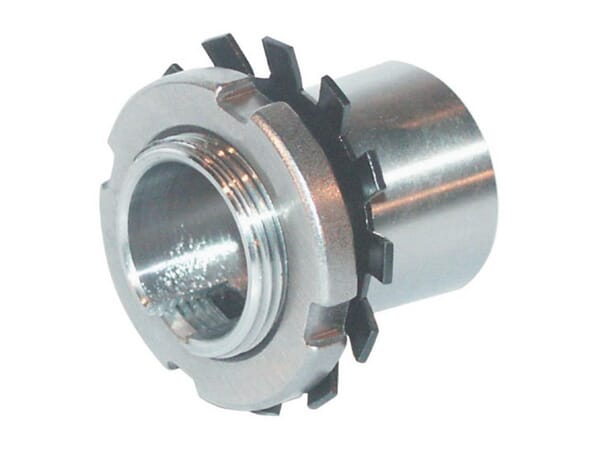

FAG Adaptor sleeve with nut 60x92x68mm H2314
