£67.52
excl. VAT
£81.02 incl. VAT
£81.02
incl. VAT
£67.52 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 76000 N |
| Basic radial load static | 63000 N |

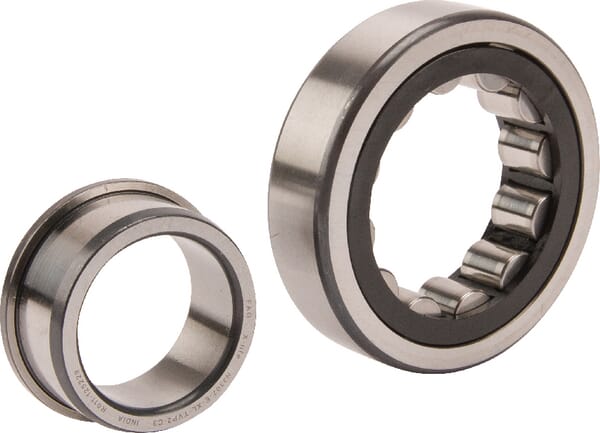

| Bearing model type | Cylindrical roller bearings |
| Benefits | Correct operating play at high temperature or press fit |
| BWidth | 21 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| Details | Radial bearing clearance (C3) |
| dInside diameter | 35 mm |
| DOutside diameter | 80 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 12600 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ307-E-XL-TVP2-C3 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | C3 |
| Ref rotation speed | 7900 r/min |
| Rows number | 1 |
| Unit | Each |
| Weight | 0.481 kg |
Logistics
| EAN | 4012801383660 |
|---|---|
| Unit of measure | EA |
| Weight | 496 g |
| Dimensions | 85 × 85 × 25 mm |
| Dangerous goods | No |
