£24.06
excl. VAT
£28.87 incl. VAT
£28.87
incl. VAT
£24.06 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

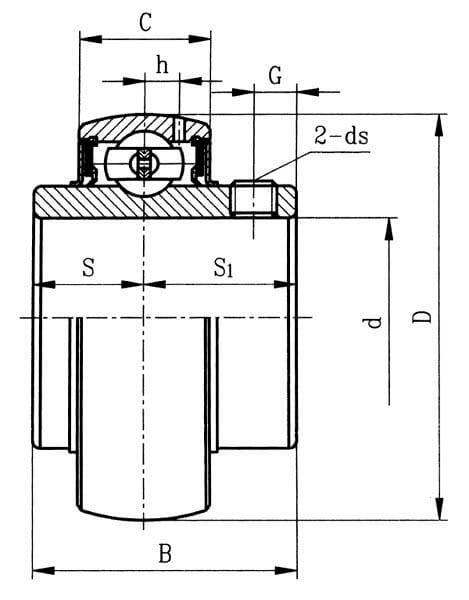

| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 19 mm |
| Ball centre to grease hole distance | 6.2 mm |
| Basic radial load dynamic | 34500 N |
| Basic radial load static | 19800 N |
| BInner ring width | 49.2 mm |
| COuter ring width | 21 mm |
| dInside diameter | 38.1 mm |
| DOutside diameter | 80 mm |
| Inside diameter | 1-1/2 Inch |
| Locking screw centre to end distance | 8 mm |
| Long description | Ball bearing inserts Koyo, series UC 200 imperial |
| Manufacturer | Schaeffler |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Outside diameter of inner ring | 52.3 mm |
| Properties | Both sides: extended inner ring with 2 adjusting screws, Convex outer ring with lubricating holes, Sealed on both sides |
| Sealing width | 21.6 mm |
| Unit | Each |
Logistics
| EAN | 4012802627534 |
|---|---|
| Unit of measure | EA |
| Weight | 670 g |
| Dimensions | 95 × 95 × 56 mm |
| Dangerous goods | No |
