£76.13
excl. VAT
£91.36 incl. VAT
£91.36
incl. VAT
£76.13 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 83000 N |
| Basic radial load static | 75000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 23 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| dInside diameter | 40 mm |
| DOutside diameter | 80 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 12500 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ2208-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | CN |
| Ref rotation speed | 9000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.486 kg |
Logistics
| EAN | 4012801020831 |
|---|---|
| Unit of measure | EA |
| Weight | 504 g |
| Dimensions | 83 × 83 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000258057

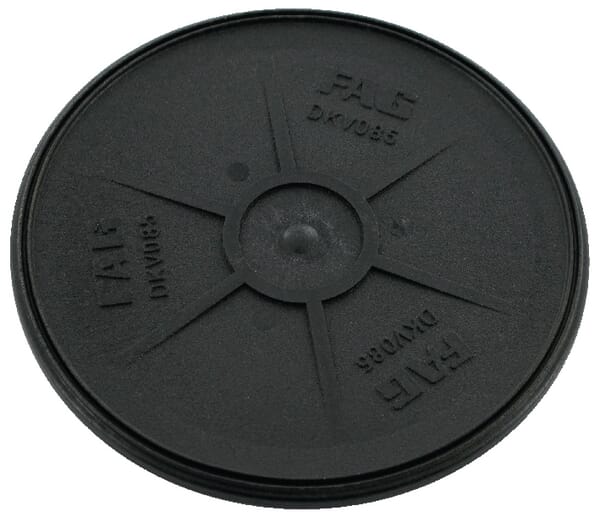

FAG Cover for SES housing EDK520617
£22.61 excl.
£27.13 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000277882

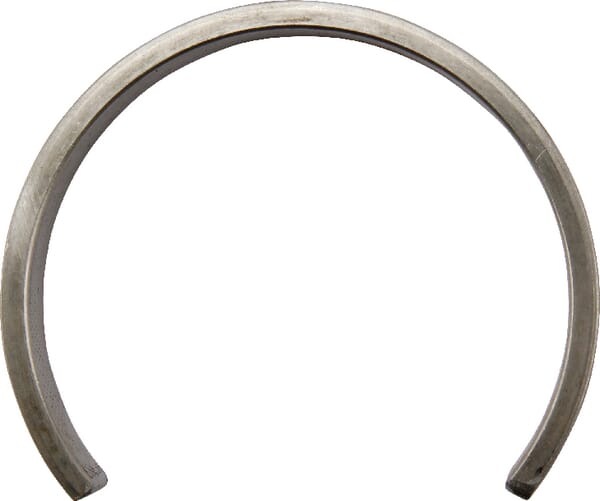

FAG Locating ring FRM(FRB) FRM90105
£13.81 excl.
£16.57 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380678
FAG Housing unit UCFC UCFC208
£43.46 excl.
£52.15 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000266500
FAG Bearing housing F11205FAG
£129.89 excl.
£155.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000168738

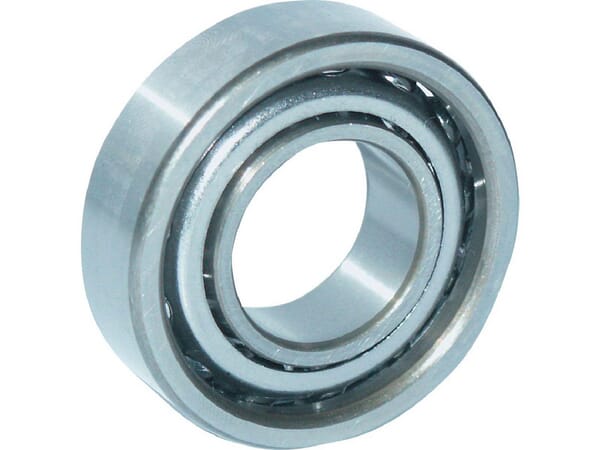

FAG Angular contact ball bearing 60x130x31mm INA/FAG 7312BTVP
£155.60 excl.
£186.72 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301021

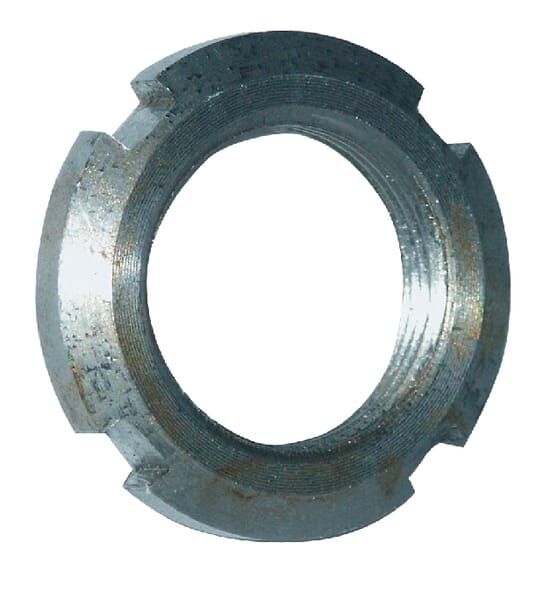

FAG Locknut KM29
