£100.33
excl. VAT
£120.40 incl. VAT
£120.40
incl. VAT
£100.33 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 83000 N |
| Basic radial load static | 75000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 23 mm |
| Consists of | Cylindrical bearing, Inner ring NUP |
| dInside diameter | 40 mm |
| DOutside diameter | 80 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 12500 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NUP2208-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 fixed and 1 loose rib, Fixed bearing, to lock shaft axially in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 9000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
Logistics
| EAN | 40128011802074012801257442 |
|---|---|
| Unit of measure | EA |
| Weight | 513 g |
| Dimensions | 85 × 85 × 27 mm |
| Dangerous goods | No |
You might also like
Free shipping

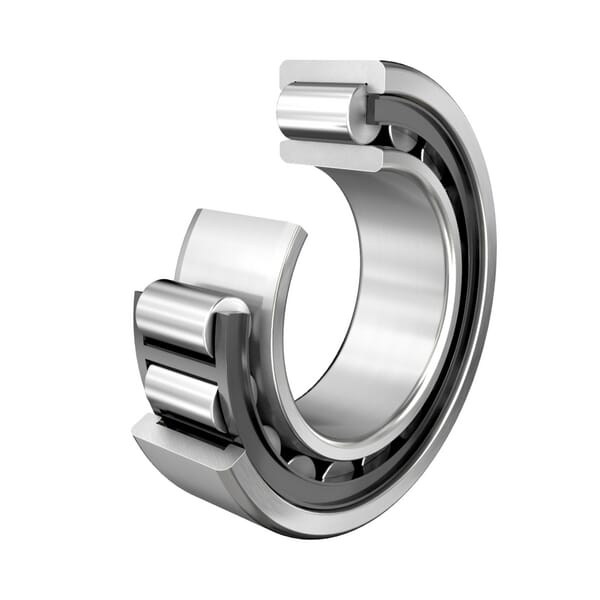

BPA000326468
FAG Cylindrical roller bearing NU320EXLTVP2
£597.10 excl.
£716.52 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380696
FAG Housing unit UCFL UCFL208
£23.22 excl.
£27.86 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000155602
FAG Deep groove ball bearing 80x140x26mm INA/FAG 62162RSC3
£71.01 excl.
£85.21 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000325158
FAG Cylindrical roller bearing 40x90x23mm INA/FAG NJ308EXLTVP2C3
£81.06 excl.
£97.27 incl.
In stock
Expected to ship on Tuesday 22 September

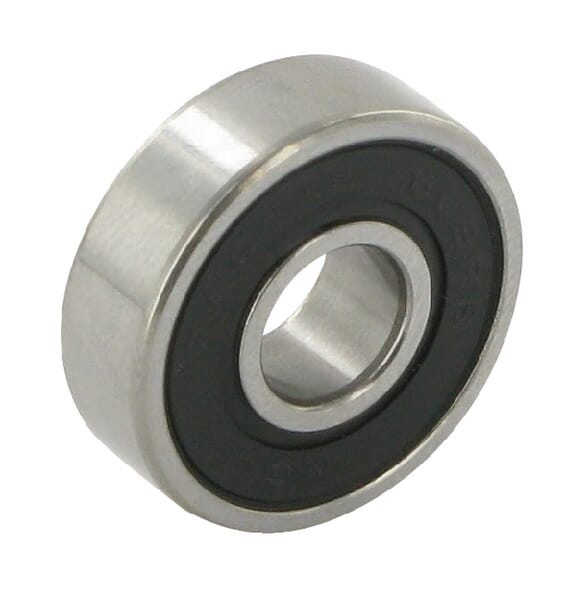

BPA000152767
