£42.58
excl. VAT
£51.10 incl. VAT
£51.10
incl. VAT
£42.58 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Basic radial load dynamic | 20600 N |
|---|---|
| Basic radial load static | 12900 N |

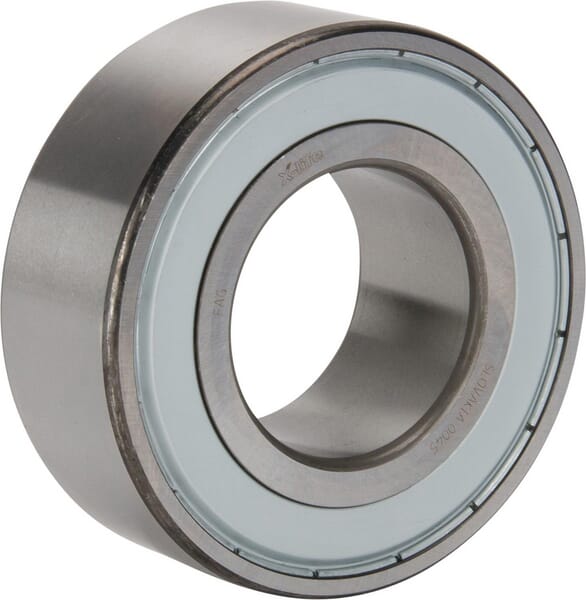

| Bearing model type | Angular contact ball bearings |
| BWidth | 20.6 mm |
| Contact angle | 30 ° |
| dInside diameter | 20 mm |
| DOutside diameter | 47 mm |
| Inside diameter of outer ring | 40.1 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 12100 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 3204-BD-XL-2Z-TVH-C3 |
| Outside diameter of inner ring | 29.22 mm |
| Radial internal clearance code | C3 |
| Ref rotation speed | 14700 r/min |
| Regreasable | No |
| Rows number | 2 |
| Sealing | ZZ |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.152 kg |
Logistics
| EAN | 4012802474688 |
|---|---|
| Unit of measure | EA |
| Weight | 158 g |
| Dimensions | 54 × 52 × 29 mm |
| Dangerous goods | No |
You might also like
BPA000088781
FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204ZZ
£43.40 excl.
£52.08 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088780
FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204BZZTVH
£43.84 excl.
£52.61 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088776

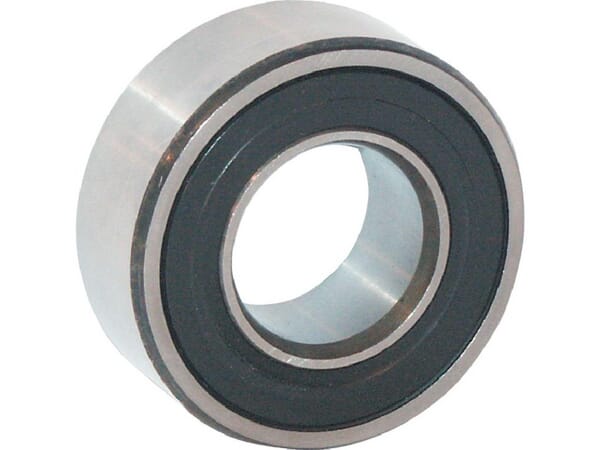

FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204B2RSRTVH
£29.94 excl.
£35.93 incl.
In stock
Expected to ship on Friday 18 September
BPA000088777

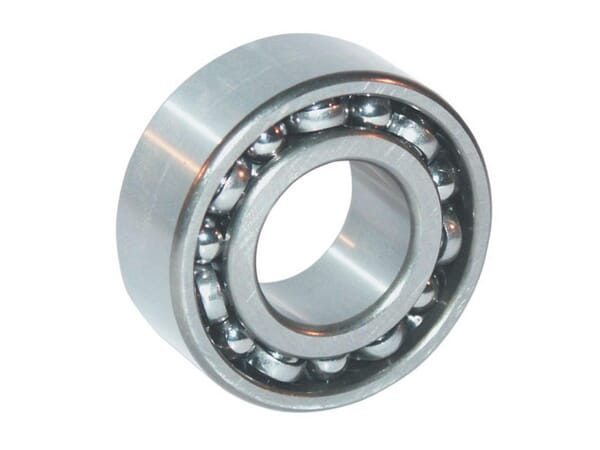

FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204BDXL2HRSTVHC3
