£104.86
excl. VAT
£125.83 incl. VAT
£125.83
incl. VAT
£104.86 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 132000 N |
| Basic radial load static | 119000 N |
| Bearing model type | Cylindrical roller bearings |
| Benefits | Correct operating play at high temperature or press fit |

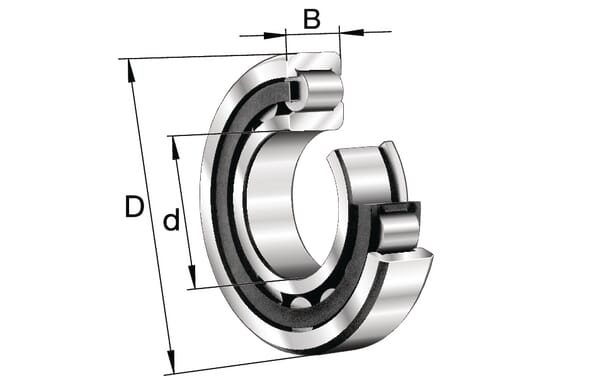

| BWidth | 33 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| Details | Radial bearing clearance (C3) |
| dInside diameter | 40 mm |
| DOutside diameter | 90 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 7500 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ2308-E-XL-TVP2-C3 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | C3 |
| Ref rotation speed | 5800 r/min |
| Rows number | 1 |
| Unit | Each |
| Weight | 0.951 kg |
Logistics
| EAN | 4012801020992 |
|---|---|
| Unit of measure | EA |
| Weight | 974 g |
| Dimensions | 98 × 94 × 38 mm |
| Dangerous goods | No |
You might also like
BPA000375512

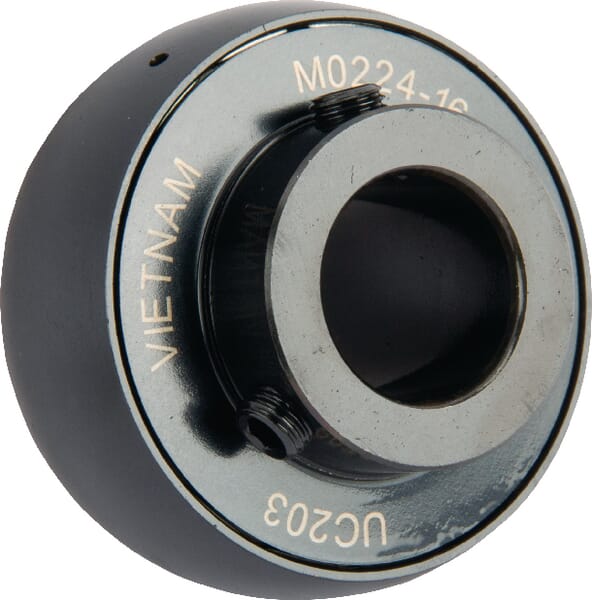

FAG Bearing insert 17x47x16.8mm INA/FAG UC203INA
