£69.52
excl. VAT
£83.42 incl. VAT
£83.42
incl. VAT
£69.52 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 72000 N |
| Basic radial load static | 63000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 19 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 45 mm |
| DOutside diameter | 85 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 10200 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU209-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 8500 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
Logistics
| EAN | 4054371383640 |
|---|---|
| Unit of measure | EA |
| Weight | 460 g |
| Dimensions | 95 × 95 × 24 mm |
| Dangerous goods | No |
You might also like
BPA000326278
FAG Cylindrical roller bearing 45x85x19mm INA/FAG NU209EXLKTVP2C3
£54.38 excl.
£65.26 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000325204
FAG Cylindrical roller bearing NJ318EXLTVP2
£540.49 excl.
£648.59 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000325126

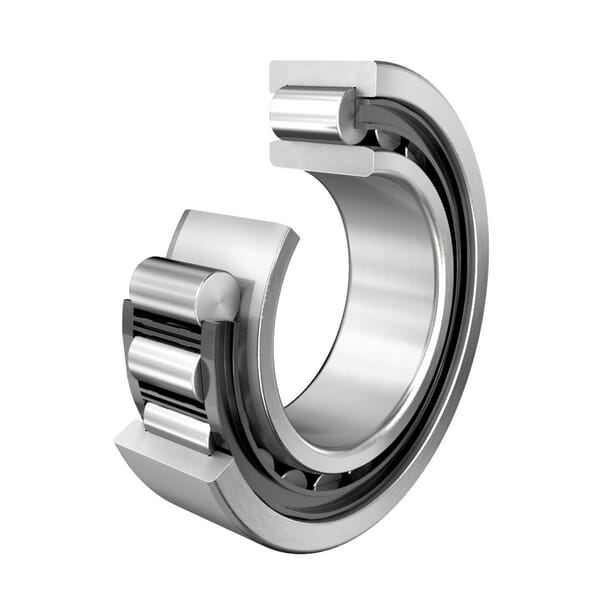

FAG Cylindrical roller bearing NJ2316EXLTVP2
£571.98 excl.
£686.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000152253
FAG Deep groove ball bearing 160x240x38mm INA/FAG 6032M
£496.38 excl.
£595.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000153324
FAG Deep groove ball bearing 9x26x8mm INA/FAG 629H2RS
£13.40 excl.
£16.08 incl.
In stock
Expected to ship on Friday 18 September
BPA000052191

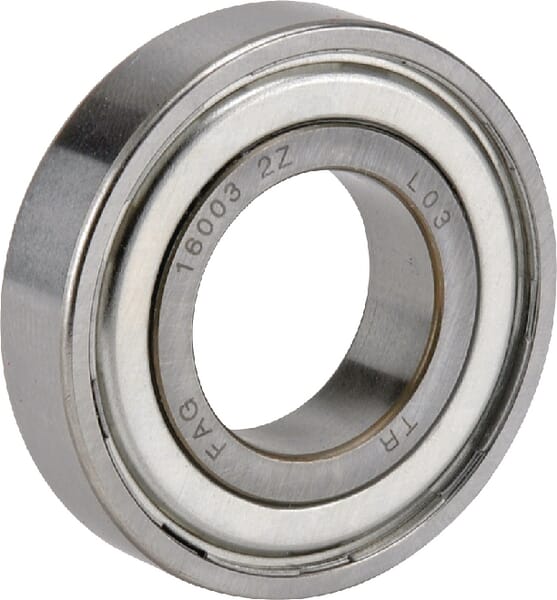

FAG Deep groove ball bearing 17x35x8mm INA/FAG 16003ZZ
